Class 150 Bronze Swing Check Valve, Bolted Cover - 12"
Class 150 Bronze Swing Check Valve, Bolted Cover - 12"
SKU:VAL-255917
High-quality Class 150 Bronze Swing Check Valve with bolted cover, ideal for industrial fluid control. ANSI B16.10/24 standards compliant.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
Class 150 Bronze Swing Check Valve, Bolted Cover - 12"
$1,299.99
Quantity: 1
Claim Your Seller Account
Class 150 Bronze Swing Check Valve, Bolted Cover - 12"
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

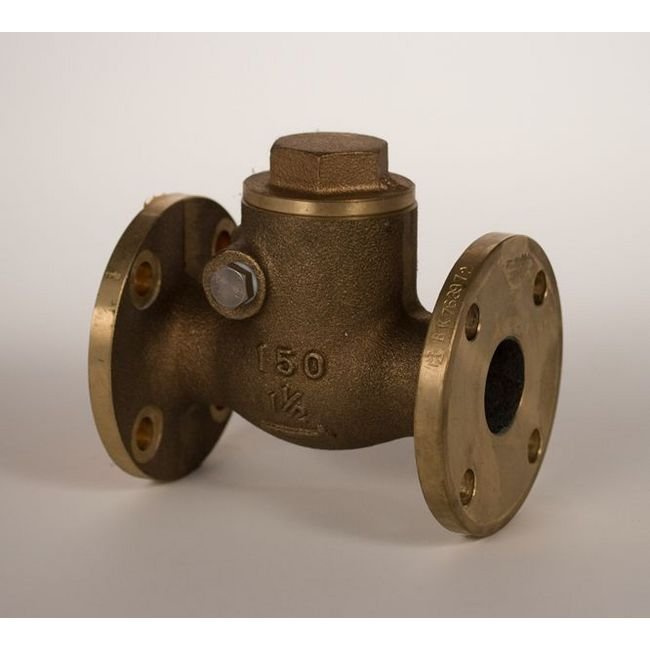

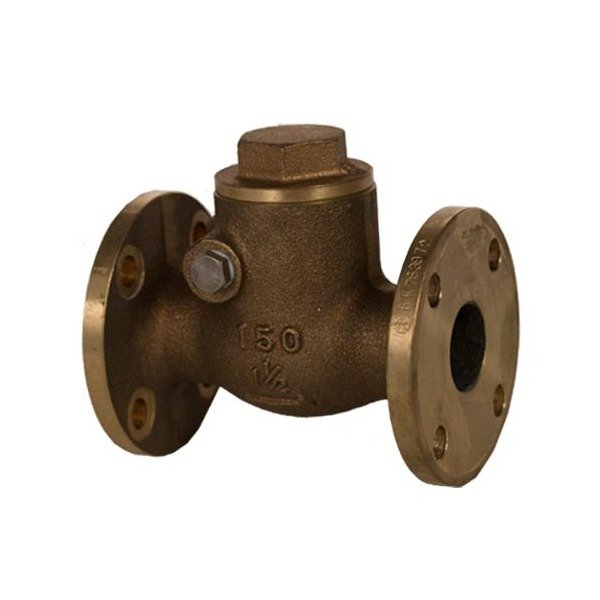

The Class 150 Bronze Swing Check Valve with a bolted cover is a reliable solution for fluid control in industrial settings. Crafted from high-quality bronze and featuring a brass seat and disc materials options including bronze or stainless steel, this valve ensures durability and longevity. With ANSI B16.10 face-to-face dimensions and ANSI B16.24 Class 150 flanges, it guarantees seamless integration into existing systems. Designed for optimal performance, this valve is hydraulic tested to withstand 350 PSIG shell pressure and 225 PSIG seat pressure.

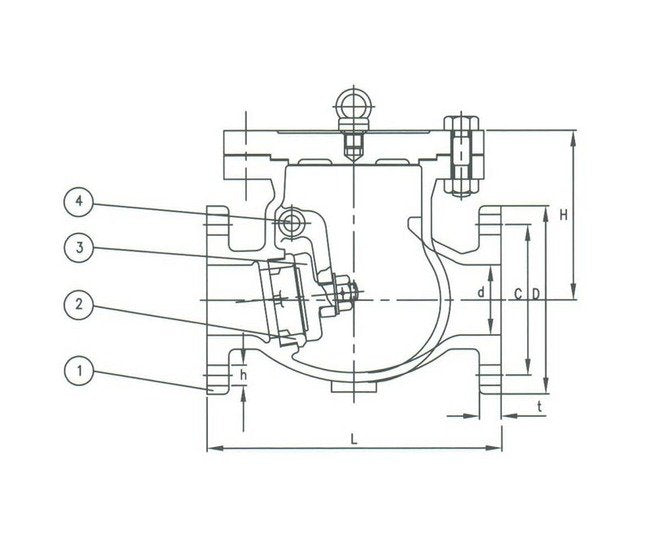

Product Specifications
Specifications Actuators
Gravity
Specifications Body Material
Bronze
Specifications C
17 in | 432 mm
Specifications Connection
Flanged Drilled
Specifications D
19.00 in | 483 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
15.35 in | 390 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
27.50 in | 698 mm
Specifications Number Of Holes
12
Specifications Seat Material
Brass
Specifications Size
12"
Specifications Stem Material
Brass
Specifications T
1.06 in | 27 mm
Specifications Weight
913 lb | 415 kg
