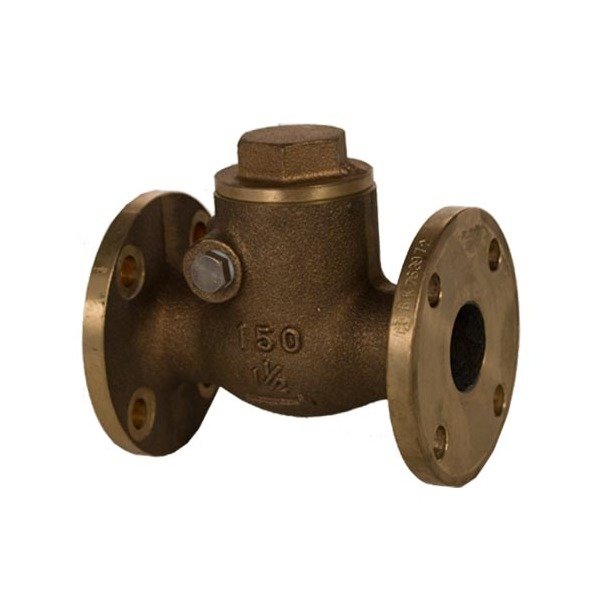

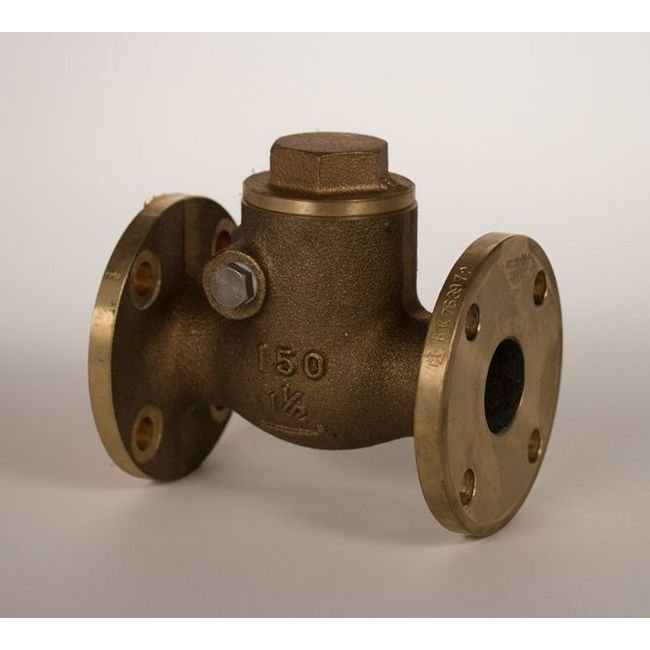

Class 150 Bronze Swing Check Valve, Bolted Cover - 2" ANSI Valve
Class 150 Bronze Swing Check Valve, Bolted Cover - 2" ANSI Valve
SKU:VAL-45f221
Durable Class 150 Bronze Swing Check Valve with Bolted Cover for industrial hydraulic applications.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
Class 150 Bronze Swing Check Valve, Bolted Cover - 2" ANSI Valve
$199.99
Quantity: 1
Claim Your Seller Account
Class 150 Bronze Swing Check Valve, Bolted Cover - 2" ANSI Valve
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Class 150 Bronze Swing Check Valve with Bolted Cover is expertly crafted with a Bronze body, ensuring exceptional durability. The Seat Ring is made of high-quality Brass, while the Disc Ring can be chosen in Bronze or Stainless Steel to suit your specific requirements. This valve meets ANSI B16.10 face-to-face dimensions and ANSI B16.24 Class 150 flange standards. With a sturdy construction and reliable performance, it is ideal for industrial applications where hydraulic inspections play a crucial role in maintaining operational safety.
Product Specifications
Specifications Actuators
Gravity
Specifications Body Material
Bronze

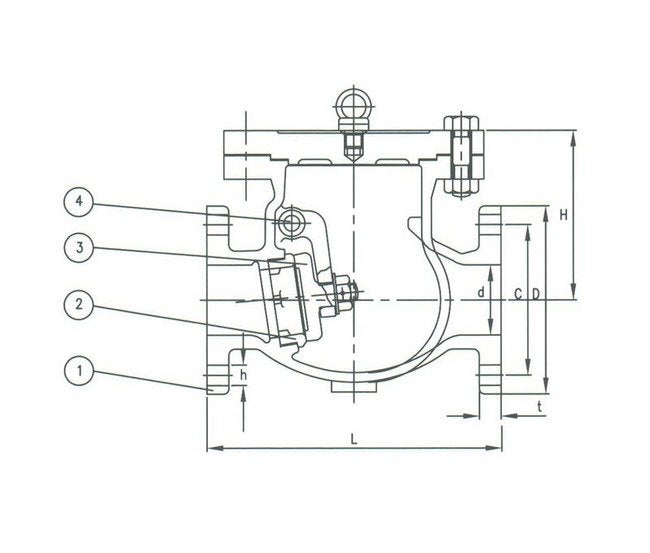

Specifications C
4.75 in | 121 mm
Specifications Connection
Flanged Drilled
Specifications D
6 in | 152 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
5.50 in | 140 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
8 in | 203 mm
Specifications Number Of Holes
4
Specifications Seat Material
Brass
Specifications Size
2"
Specifications Stem Material
Brass
Specifications T
0.50 in | 13 mm
Specifications Weight
42 lb | 19 kg
