Class 150 Bronze Swing Check Valve, Bolted Cover - 4"
Class 150 Bronze Swing Check Valve, Bolted Cover - 4"
SKU:VAL-8d85cb
High-quality Class 150 Bronze Swing Check Valve with Bolted Cover - Ideal for consumer and institutional use.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Class 150 Bronze Swing Check Valve, Bolted Cover - 4"
$799.99
Quantity: 1
Claim Your Seller Account
Class 150 Bronze Swing Check Valve, Bolted Cover - 4"
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Class 150 Bronze Swing Check Valve with a Bolted Cover is expertly designed for durability and optimal performance. Constructed with high-quality bronze body, brass seat, and bronze/stainless steel disc ring, this valve ensures reliable operation in various applications. With compliance to ANSI B16.10 face-to-face dimensions and ANSI B16.24 Class 150 flange standards, this valve offers exceptional hydraulic inspection ratings, including 350 PSIG for the shell and 225 PSIG for the seat. Ideal for gravity actuation and featuring a flanged connection for ease of installation, this valve is a trustworthy choice for both consumer and institutional buyers.
Product Specifications
Specifications Actuators
Gravity
Specifications Body Material
Bronze

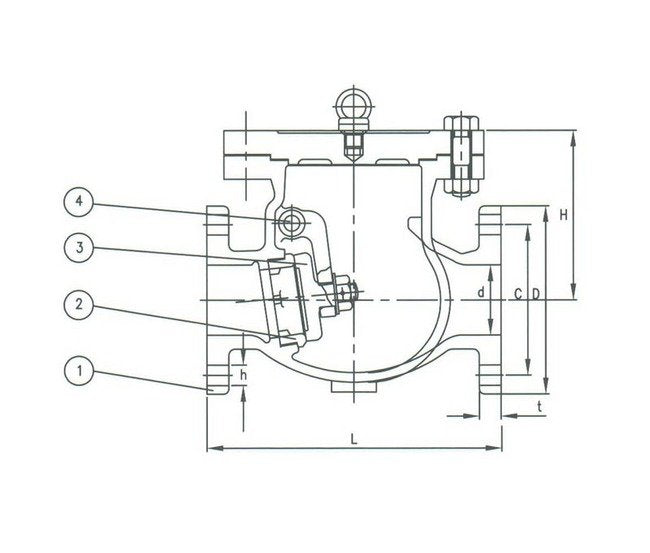

Specifications C
7.500 in | 191 mm
Specifications Connection
Flanged Drilled
Specifications D
9 in | 229 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
7.88 in | 200 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
11.5 in | 292 mm
Specifications Number Of Holes
8
Specifications Seat Material
Brass
Specifications Size
4"
Specifications Stem Material
Brass
Specifications T
0.68 in | 17 mm
Specifications Weight
106 lb | 48.0 kg
