Class 150 Bronze Swing Check Valve - Bolted Cover - 6"
Class 150 Bronze Swing Check Valve - Bolted Cover - 6"
SKU:VAL-b903d6
High-quality Class 150 Bronze Swing Check Valve - Bolted Cover for efficient flow control in industrial applications.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Class 150 Bronze Swing Check Valve - Bolted Cover - 6"
$599.99
Quantity: 1
Claim Your Seller Account
Class 150 Bronze Swing Check Valve - Bolted Cover - 6"
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

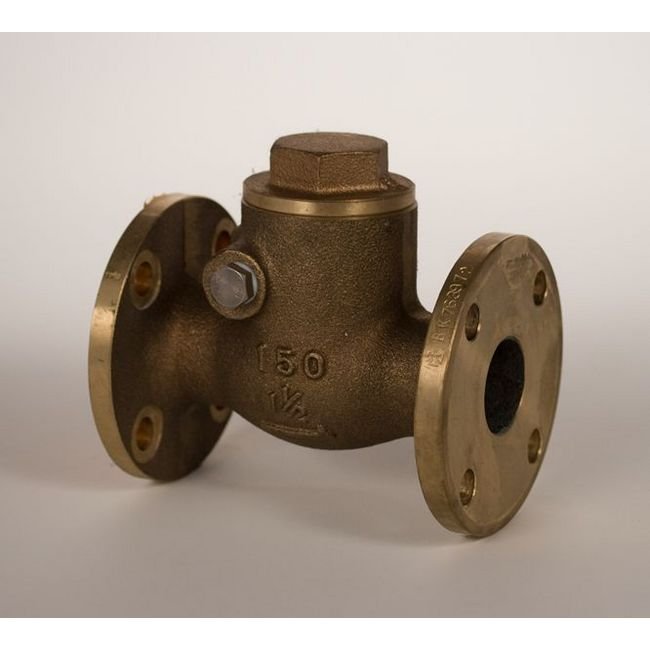

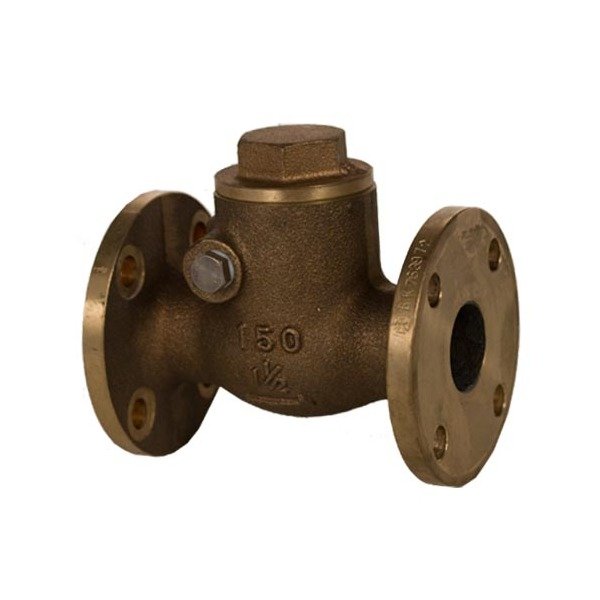

The Class 150 Bronze Swing Check Valve with Bolted Cover is a premium industrial valve designed for reliable flow control. Crafted from high-quality bronze, this valve ensures durability and corrosion resistance in demanding environments. The bolted cover enhances maintenance efficiency, allowing quick access for inspection and repairs. Compliant with ANSI standards, this valve guarantees optimal performance and longevity in fluid handling systems.

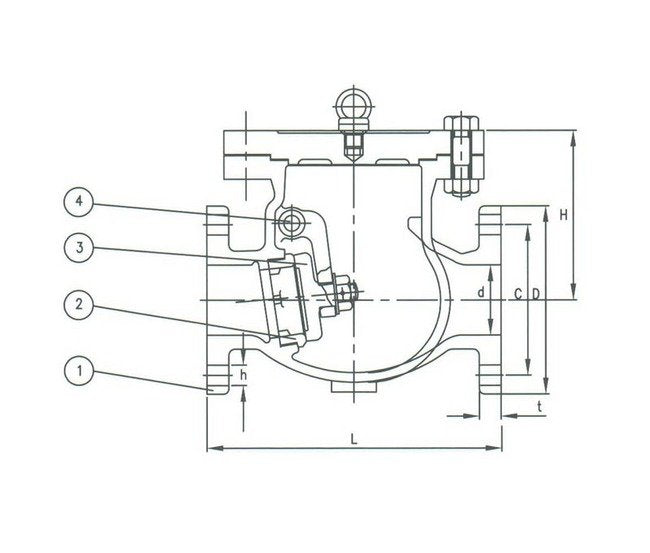

Product Specifications
Specifications Actuators
Gravity
Specifications Body Material
Bronze
Specifications C
9.500 in | 241 mm
Specifications Connection
Flanged Drilled
Specifications D
11 in | 279 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
9.50 in | 241 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
14 in | 356 mm
Specifications Number Of Holes
8
Specifications Seat Material
Brass
Specifications Size
6"
Specifications Stem Material
Brass
Specifications T
0.80 in | 20 mm
Specifications Weight
330 lb | 150.0 kg
