Class 150 Bronze Swing Check Valve with Bolted Cover

Name: Class 150 Bronze Swing Check Valve with Bolted Cover
Brand: World Wide Metric, Inc.
SKU: VAL-f256ea
Price: 899.99 USD
Availability: OutOfStock

SKU:VAL-f256ea

Durable Class 150 Bronze Swing Check Valve for industrial use. ANSI B16.10 and ANSI B16.24 compliant.

$899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

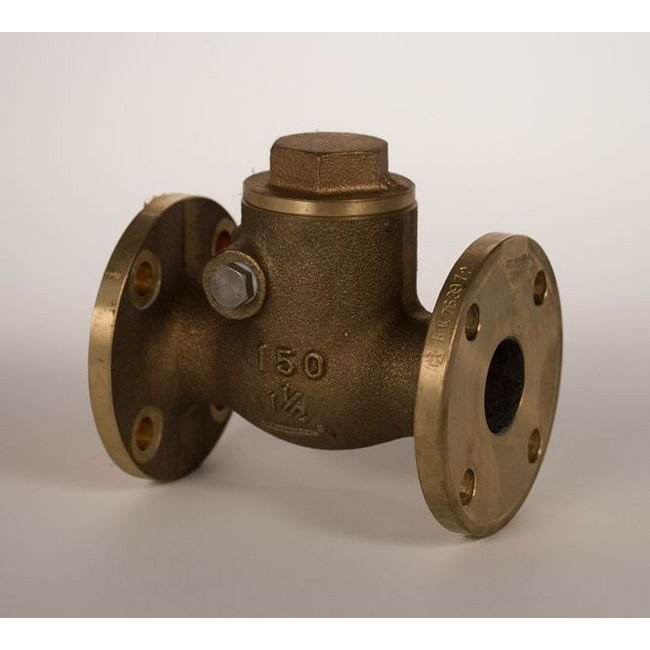

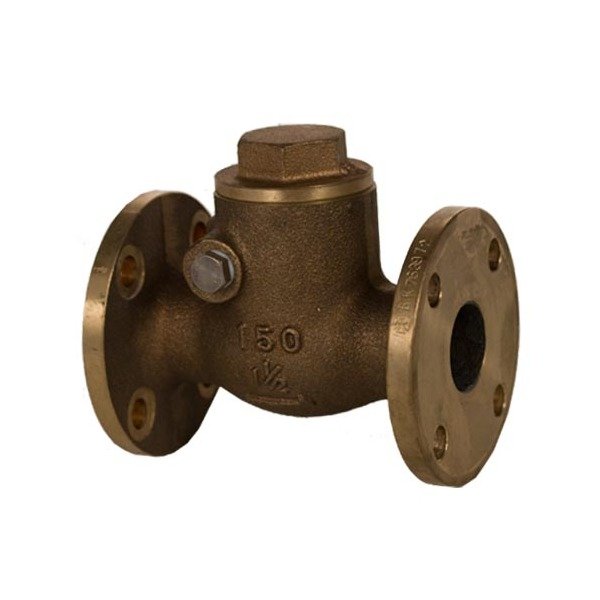

The Class 150 Bronze Swing Check Valve with Bolted Cover is a durable and reliable valve designed for various industrial applications. Constructed with bronze body, brass seat, and options for bronze or stainless steel disc material, this valve ensures superior performance and longevity. With ANSI B16.10 face to face dimensions and ANSI B16.24 Class 150 flanges, this valve is easy to install and compatible with industry standards. Its hydraulic inspections at 350 PSIG for the shell and 225 PSIG for the seat guarantee operational safety and efficiency.

Product Specifications

Specifications Actuators

Gravity

Specifications Body Material

Bronze

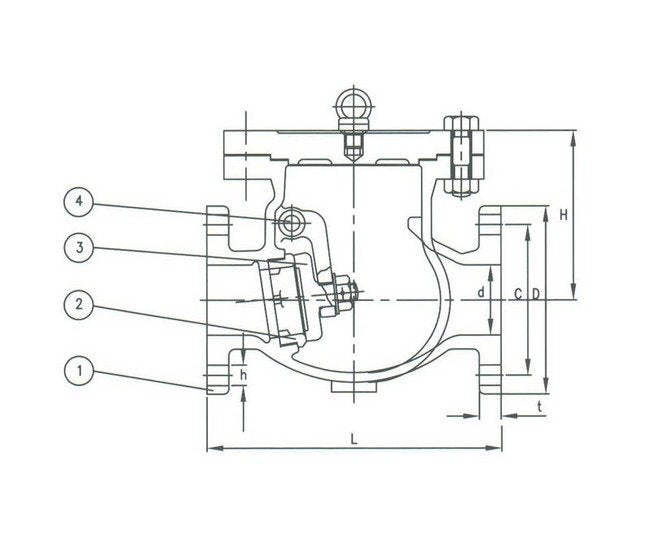

Specifications C

14 1/4 in | 362 mm

Specifications Connection

Flanged Drilled

Specifications D

16.00 in | 406 mm

Specifications Disc Material

Bronze | Stainless Steel

Specifications H

13.38 in | 340 mm

Specifications Hydraulic Inspection Seat

225 PSIG

Specifications Hydraulic Inspection Shell

350 PSIG

Specifications L

24.50 in | 622 mm

Specifications Number Of Holes

Specifications Seat Material

Brass

Specifications Size

10"

Specifications Stem Material

Brass

Specifications T

1.00 in | 25 mm

Specifications Weight

704 lb | 320.0 kg

Class 150 Bronze Swing Check Valve with Bolted Cover
