Class 150 Bronze Swing Check Valve with Bolted Cover
Class 150 Bronze Swing Check Valve with Bolted Cover
SKU:VAL-eba533
High-quality Class 150 Bronze Swing Check Valve with Bolted Cover, ideal for fluid control applications. Meets ANSI standards.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Class 150 Bronze Swing Check Valve with Bolted Cover
$129.99
Quantity: 1
Claim Your Seller Account
Class 150 Bronze Swing Check Valve with Bolted Cover
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

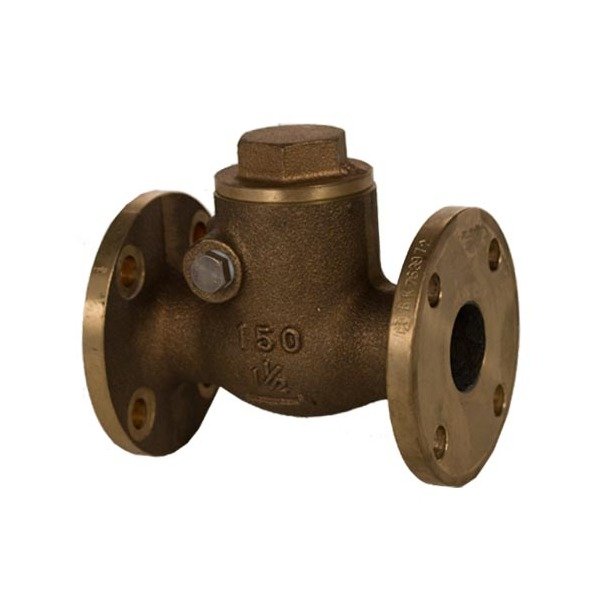

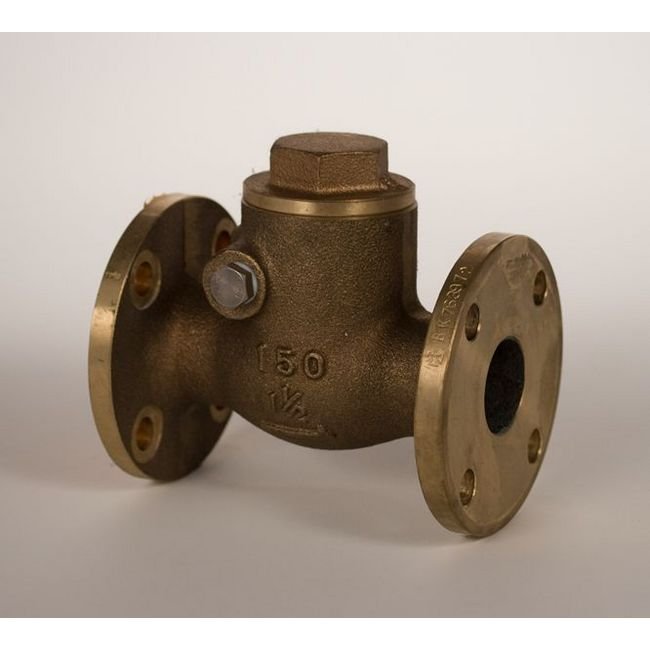

The Class 150 Bronze Swing Check Valve with Bolted Cover is a reliable solution for fluid control applications. Constructed from durable bronze with a bolted cover design, this valve ensures secure closure and prevents backflow. The seat ring is made of brass, offering excellent sealing properties. The disc ring is available in bronze or stainless steel, enhancing corrosion resistance. With a hydraulic inspection shell rating of 350 PSIG and seat rating of 225 PSIG, this valve meets ANSI B16.10 face-to-face dimensions and ANSI B16.24 Class 150 flange standards, making it ideal for both consumer and institutional use.
Product Specifications
Specifications Actuators
Gravity
Specifications Body Material
Bronze
Specifications Connection
Flanged Drilled
Specifications Disc Material
Bronze | Stainless Steel
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications Seat Material
Brass
Specifications Size
1"
Specifications Stem Material
Brass
