Class 150 Bronze Swing Check Valve with Bolted Cover - 1-1/2 inch Flanged
Class 150 Bronze Swing Check Valve with Bolted Cover - 1-1/2 inch Flanged
SKU:VAL-2c23d5
Premium Class 150 Bronze Swing Check Valve with Bolted Cover - Durable construction, ANSI compliant
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Class 150 Bronze Swing Check Valve with Bolted Cover - 1-1/2 inch Flanged
$249.99
Quantity: 1
Claim Your Seller Account
Class 150 Bronze Swing Check Valve with Bolted Cover - 1-1/2 inch Flanged
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

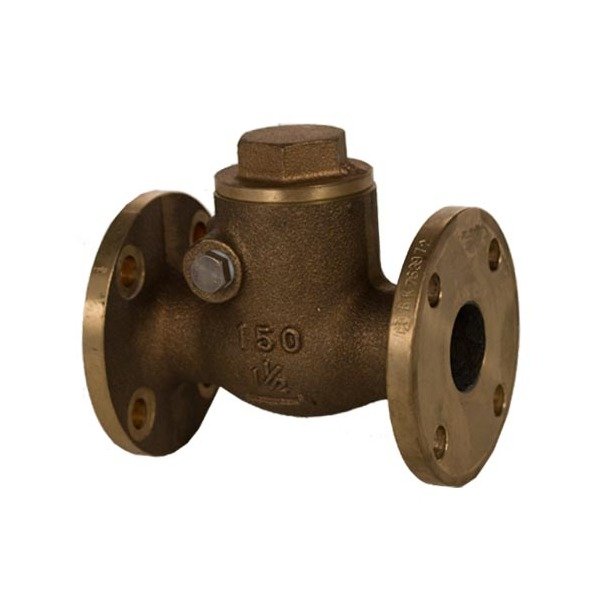

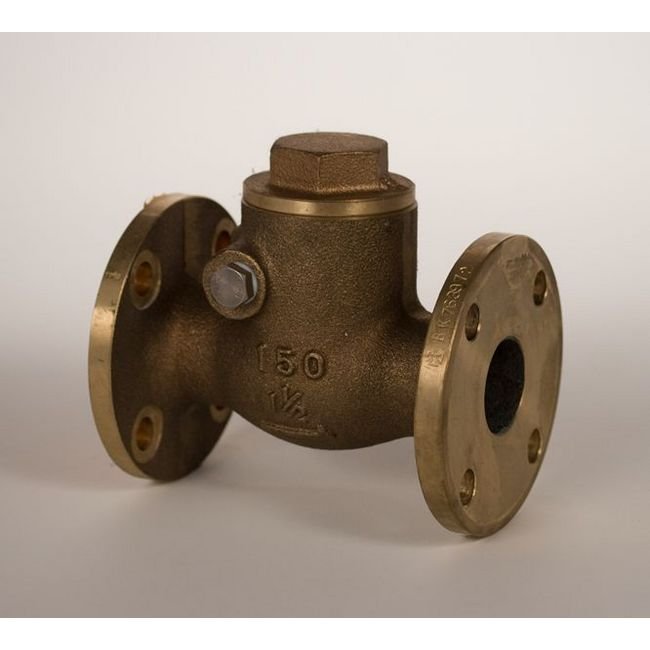

The Class 150 Bronze Swing Check Valve with Bolted Cover is a high-quality valve designed for optimal performance. Constructed with bronze body, brass seat, and bronze or stainless steel disc material, this valve ensures durability and longevity. It features a hydraulic shell inspection pressure of 350 PSIG and a seat inspection pressure of 225 PSIG, meeting stringent industry standards. With gravity actuators and flanged connection, this valve offers easy installation and reliable functionality. Conforming to ANSI B16.10 for face-to-face dimensions and ANSI B16.24 Class 150 for flange specifications, this valve is ideal for both consumer and institutional applications.
Product Specifications
Specifications Actuators
Gravity
Specifications Body Material
Bronze
Specifications Connection
Flanged Drilled
Specifications Disc Material
Bronze | Stainless Steel
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications Seat Material
Brass
Specifications Size
1-1/2"
Specifications Stem Material
Brass
