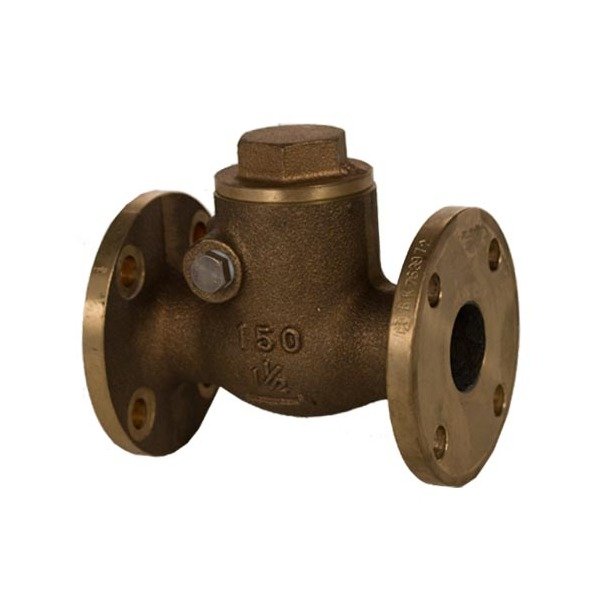

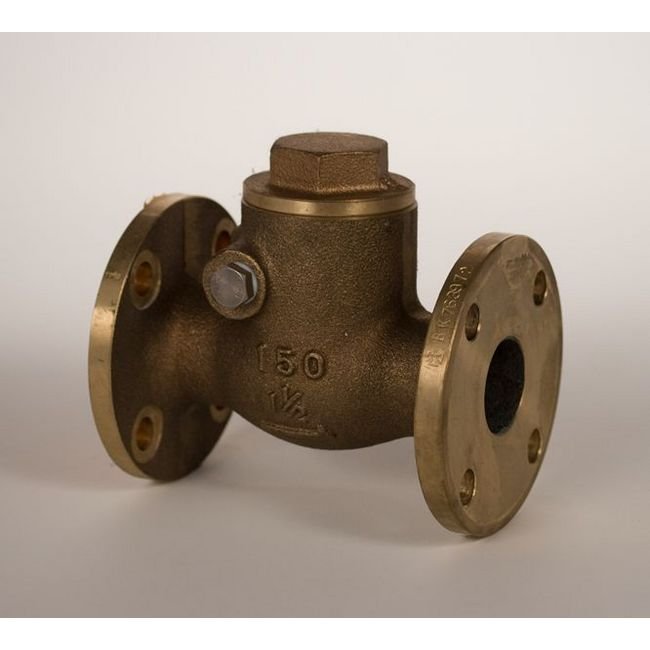

• Class 150 Bronze Swing Check Valve with Bolted Cover - 1/2" - Image 1
  • Class 150 Bronze Swing Check Valve with Bolted Cover - 1/2" - Image 2
  • Class 150 Bronze Swing Check Valve with Bolted Cover - 1/2" - Image 3
1 3
World Wide Metric, Inc. →

Class 150 Bronze Swing Check Valve with Bolted Cover - 1/2"

Class 150 Bronze Swing Check Valve with Bolted Cover - 1/2"

VAL-ef21ea

Durable Class 150 Bronze Swing Check Valve for reliable flow control in hydraulic systems.

$89.99
$89.99
Sale

Initiate Order

Class 150 Bronze Swing Check Valve with Bolted Cover - 1/2"

Class 150 Bronze Swing Check Valve with Bolted Cover - 1/2"

$89.99

Quantity: 1

Claim Your Seller Account

Class 150 Bronze Swing Check Valve with Bolted Cover - 1/2"

Class 150 Bronze Swing Check Valve with Bolted Cover - 1/2"

$89.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Class 150 Bronze Swing Check Valve with Bolted Cover is a robust and reliable valve designed for high-performance hydraulic applications. Constructed with bronze body, brass seat, and bronze or stainless steel disc ring, this valve ensures durability and efficient operation. Its gravity-actuated design and flanged connection make it easy to install and operate, meeting ANSI B16.24 Class 150 standards. With hydraulic inspection pressures of 350 PSIG for the shell and 225 PSIG for the seat, this valve guarantees secure and leak-free performance. Trust this valve for superior flow control and longevity in your industrial processes.

Product Specifications

Specifications Actuators
Gravity
Specifications Body Material
Bronze
Specifications Connection
Flanged Drilled
Specifications Disc Material
Bronze | Stainless Steel
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications Seat Material
Brass
Specifications Size
1/2"
Specifications Stem Material
Brass
