Class 150 Bronze Swing Check Valve with Bolted Cover - 3/4"
Class 150 Bronze Swing Check Valve with Bolted Cover - 3/4"
SKU:VAL-ac9948
Rugged Class 150 Bronze Swing Check Valve for secure fluid control - 3/4" size. Compliant with ANSI standards.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Class 150 Bronze Swing Check Valve with Bolted Cover - 3/4"
$129.99
Quantity: 1
Claim Your Seller Account
Class 150 Bronze Swing Check Valve with Bolted Cover - 3/4"
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

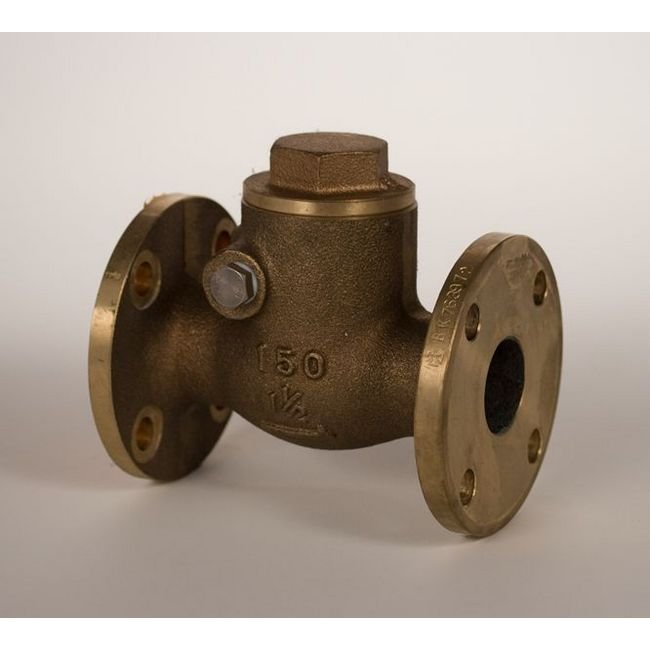

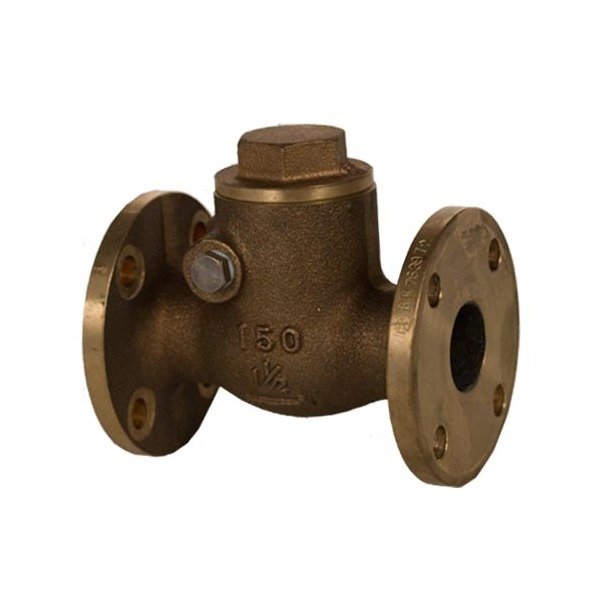

The Class 150 Bronze Swing Check Valve with Bolted Cover is a reliable solution for fluid control applications. Constructed with Bronze body, Bronze seat ring, and either Bronze or Stainless Steel disc ring, this valve ensures durability and efficiency. With a hydraulic inspection of up to 350 PSIG on the shell and 225 PSIG on the seat, it promises safety and performance. Compliant with ANSI standards, featuring a brass hinge and flanges meeting ANSI B16.24 Class 150 specifications, this valve is a top choice for institutional setups requiring precision and quality.
Product Specifications
Specifications Actuators
Gravity
Specifications Body Material
Bronze
Specifications Connection
Flanged Drilled
Specifications Disc Material
Bronze | Stainless Steel
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications Seat Material
Brass
Specifications Size
3/4"
Specifications Stem Material
Brass
