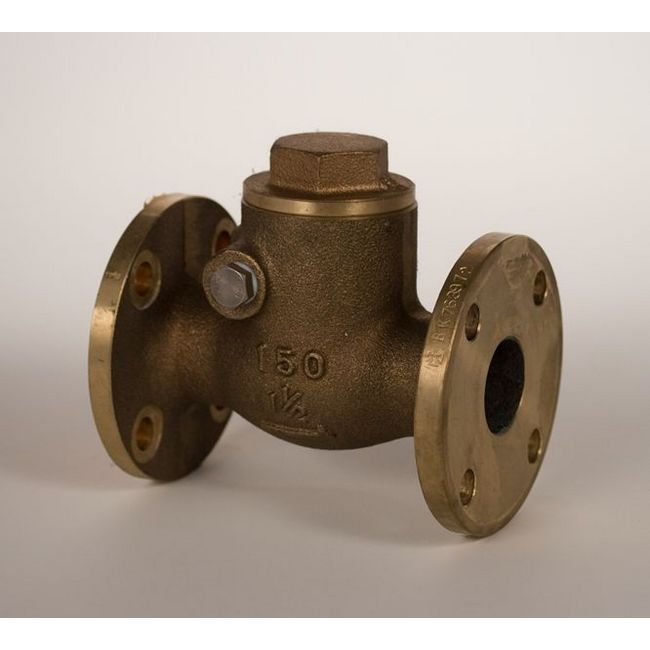

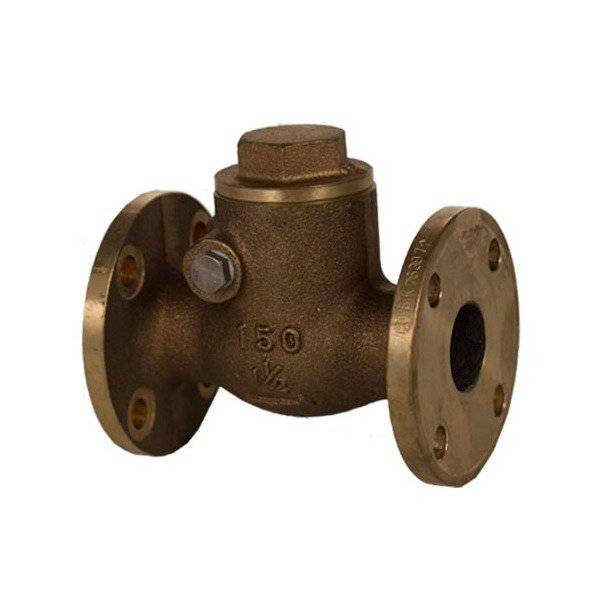

The Class 150 Bronze Swing Check Valve with Bolted Cover is engineered for reliable performance in ANSI valve applications. Constructed from durable bronze with brass and stainless steel components, this valve ensures optimal fluid control and longevity. Meeting ANSI B16.10 face-to-face and ANSI B16.24 Class 150 flange standards, it offers a hydraulic shell inspection pressure of 350 PSIG and seat inspection pressure of 225 PSIG. Suitable for industrial and institutional use, this valve provides gravity actuation and precise connection with flanged drilling.

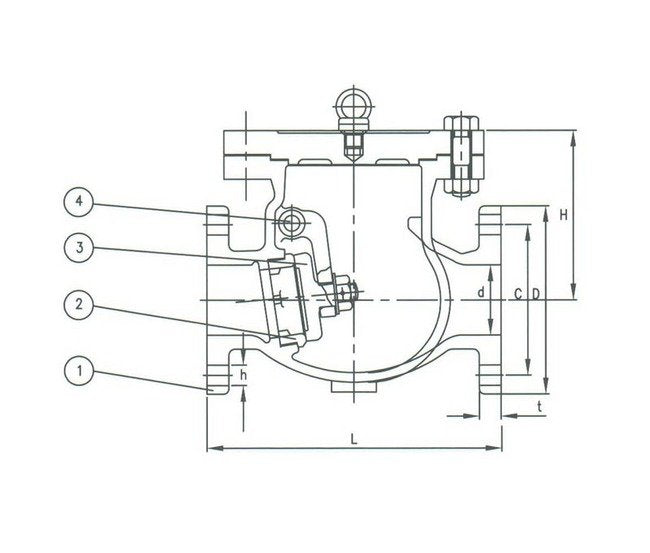

Product Specifications
Specifications Actuators
Gravity
Specifications Body Material
Bronze
Specifications C
8.50 in | 216 mm
Specifications Connection
Flanged Drilled
Specifications D
10 in | 254 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
8.38 in | 213 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
13.00 in | 330 mm
Specifications Number Of Holes
8
Specifications Seat Material
Brass
Specifications Size
5"
Specifications Stem Material
Brass
Specifications T
0.75 in | 19 mm
Specifications Weight
185 lb | 84 kg
