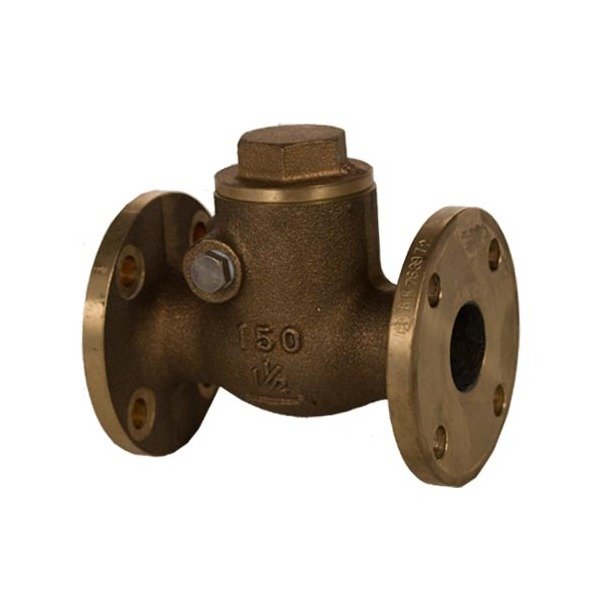

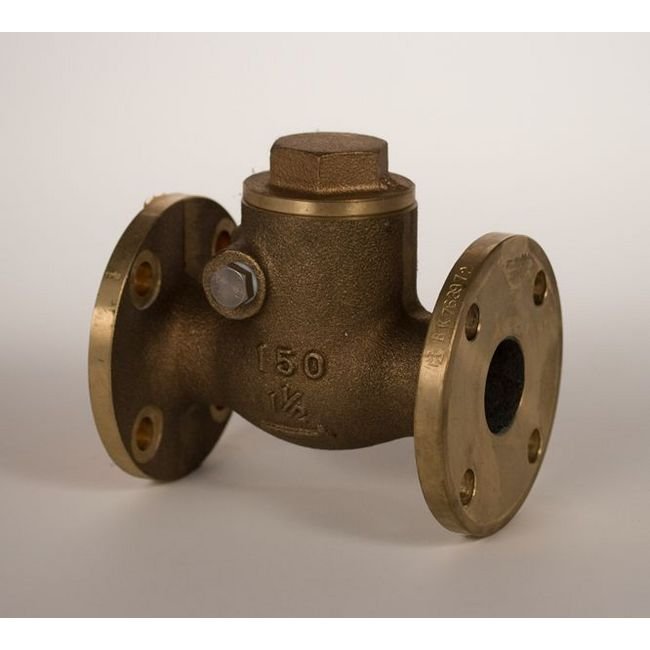

Class 150 Bronze Swing Check Valve with Bolted Cover - 8"
Class 150 Bronze Swing Check Valve with Bolted Cover - 8"
SKU:VAL-183745
Premium Class 150 Bronze Swing Check Valve - Ideal for industrial fluid control. ANSI B16.10 & B16.24 Compliant.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Class 150 Bronze Swing Check Valve with Bolted Cover - 8"
$599.99
Quantity: 1
Claim Your Seller Account
Class 150 Bronze Swing Check Valve with Bolted Cover - 8"
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Class 150 Bronze Swing Check Valve with Bolted Cover offers reliability and durability in fluid control systems. Constructed from high-quality bronze, with seat and disc options in brass or stainless steel, this valve ensures optimal performance. With ANSI B16.10 face to face and ANSI B16.24 Class 150 flange standards compliance, this valve is engineered for precision and efficiency in industrial applications.
Product Specifications
Specifications Actuators
Gravity
Specifications Body Material
Bronze

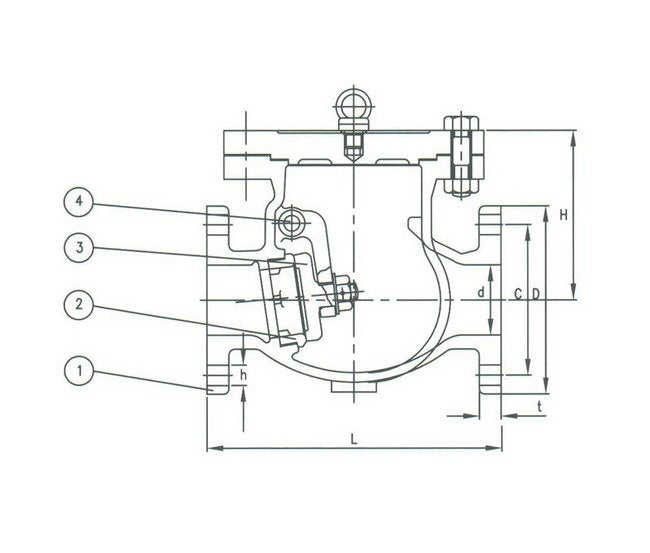

Specifications C
11.75 in | 298 mm
Specifications Connection
Flanged Drilled
Specifications D
13.50 in | 343 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
10.50 in | 267 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
19.5 in | 495 mm
Specifications Number Of Holes
8
Specifications Seat Material
Brass
Specifications Size
8"
Specifications Stem Material
Brass
Specifications T
0.94 in | 24 mm
Specifications Weight
484 lb | 220 kg
