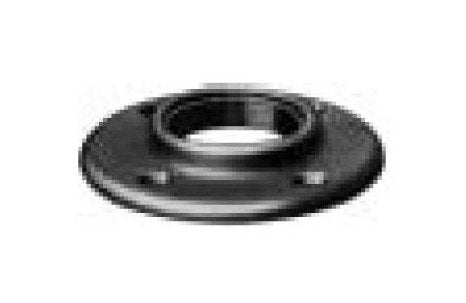

Class 150 Malleable Iron Floor Flange, 1 1/2 inch

Name: Class 150 Malleable Iron Floor Flange, 1 1/2 inch
Brand: Caylor Industrial Sales, Inc.
SKU: FIT-b24ab3
Price: 12.99 USD
Availability: OutOfStock

SKU:FIT-b24ab3

Durable Class 150 Malleable Iron Floor Flange, NPS 1 1/2", ASTM Compliant

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Class 150 Malleable Iron Floor Flange, with a Nominal Pipe Size (NPS) of 1 1/2 inches, is a robust fitting designed for industrial applications. This floor flange features a 114mm diameter, 4 bolt holes with an 89mm bolt circle, and weighs 0.54 kg in black finish. Its durable construction ensures stability and reliability in heavy-duty environments, making it ideal for structural support and pipeline installations. Compliant with ASTM standards, this floor flange meets stringent quality requirements, offering longevity and performance in commercial and institutional settings.

Product Specifications

Specifications Diameter Of Bolt Circle

89 mm

Specifications Diameter Of Flange

114 mm

Specifications Diameter Of Holes

8 mm

Specifications Dn

Specifications Nps

1 1/2

Specifications Number Of Holes

Specifications Weight Black

0.54 kg

Specifications Weight Galv

0.57 kg

Class 150 Malleable Iron Floor Flange, 1 1/2 inch
