Class 150 Welding Neck Flange for secure and leak-proof connections in industrial applications. Compliant with ANSI B16.5 standards.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Class 150 Welding Neck Flange
$49.99
Quantity: 1
Claim Your Seller Account
Class 150 Welding Neck Flange
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

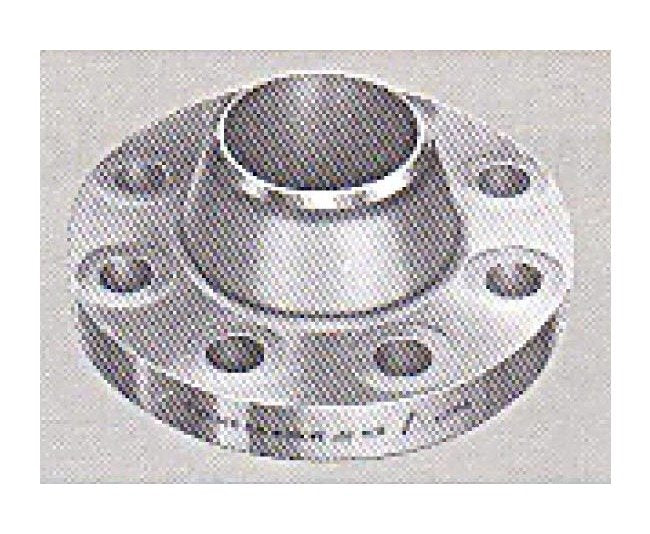

The Class 150 Welding Neck Flange is designed for industrial applications requiring secure and leak-proof connections. Made from forged steel, this flange features precise specifications including a nominal pipe size of 1 1/4 inches, an outside diameter of 4.62 inches, and a raised face for enhanced sealing. Compliant with ANSI B16.5 standards, it ensures high performance and reliability in demanding environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features 0

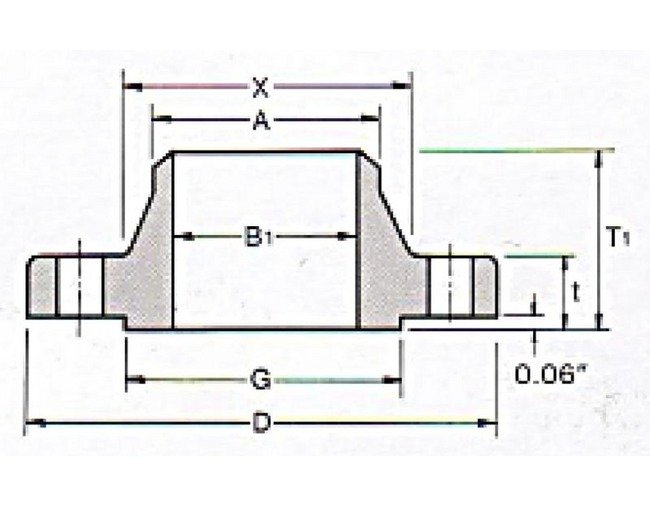

Class 150 flanges except Lap Joint will be furnished with 0.06" raised face, which is included in 'Thickness' (t) and 'Length through Hub' (T1), (T2).For Slip-on, Threaded, Socket Welding and Lap Joint Flanges, the hubs can be shaped either vertical from base to top or tapered within the limits of 7 degreesBlind Flanges may be made with the same hub as that used for Slip-On Flanges or without hub. The gasket surface and backside (bearing surface for bolting) are made parallel within 1 degree. To accomplish parallelism, spot facing is carried out according to MSS SP-9, without reducing thickness (t).Depth of Socket (Y) is covered by ANSI B16.5 only in sizes through 3 inch, over 3" is at the manufacturer's option.
Specifications Approx Weight
3.10 lbs
Specifications Bolt Circle Diameter
3.50 inches
Specifications Bore B1
1.38 inches
Specifications Diameter At Base Of Hub X
2.31 inches
Specifications Diameter Of Bolts
1/2 inches
Specifications Diameter Of Holes
0.62 inches
Specifications Diameter Of Hub At Bevel A
1.66 inches
Specifications Length Thru Hub T1
2.25 inches
Specifications Machine Bolt Length Raised Face
2.25 inches
Specifications Nominal Pipe Size
1 1/4 inches
Specifications Number Of Holes
4
Specifications Od Of Raised Face G
2.50 inches
Specifications Outside Diameter D
4.62 inches
Specifications Stud Bolt Length Raised Face
2.75 inches
Specifications Stud Bolt Length Ring Joint
3.25 inches
Specifications Thickness T
0.62 inches
