Class 150 Welding Neck Flange
Class 150 Welding Neck Flange
SKU:FIT-3c8f46
High-quality Class 150 Welding Neck Flange for secure pipe connections. Precisely crafted to industry standards for reliable performance.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Class 150 Welding Neck Flange
$89.99
Quantity: 1
Claim Your Seller Account
Class 150 Welding Neck Flange
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

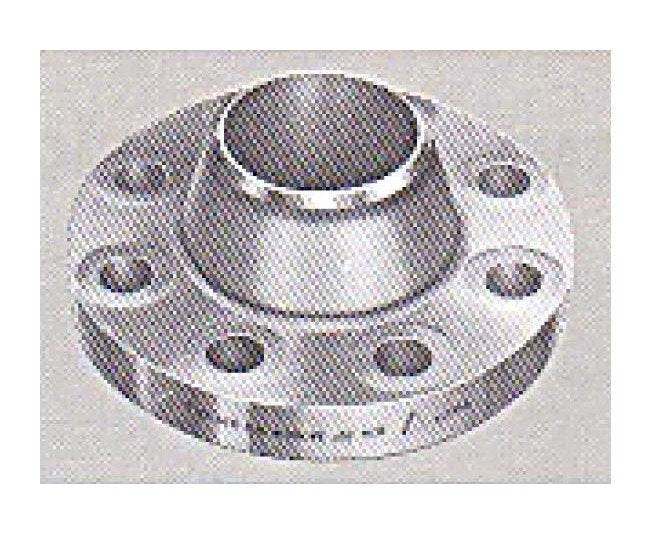

The Class 150 Welding Neck Flange offers a robust solution for connecting pipes, featuring precise dimensions including a 5-inch nominal pipe size and 10.00-inch outside diameter. Compliant with industry standards, this flange ensures seamless installation and reliable performance in various applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features 0

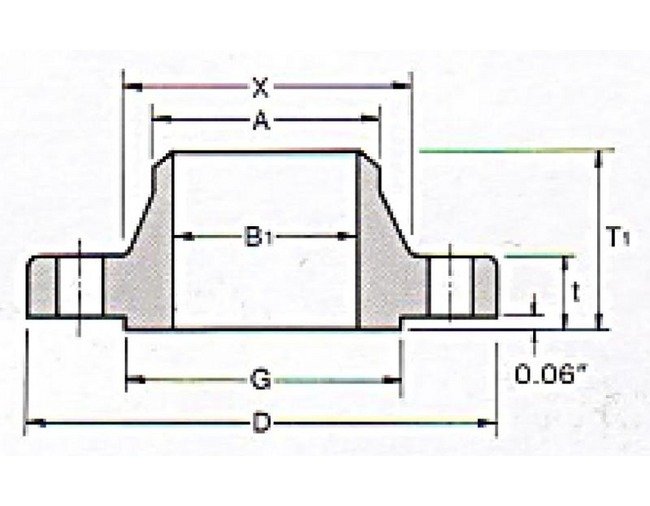

Class 150 flanges except Lap Joint will be furnished with 0.06" raised face, which is included in 'Thickness' (t) and 'Length through Hub' (T1), (T2).For Slip-on, Threaded, Socket Welding and Lap Joint Flanges, the hubs can be shaped either vertical from base to top or tapered within the limits of 7 degreesBlind Flanges may be made with the same hub as that used for Slip-On Flanges or without hub. The gasket surface and backside (bearing surface for bolting) are made parallel within 1 degree. To accomplish parallelism, spot facing is carried out according to MSS SP-9, without reducing thickness (t).Depth of Socket (Y) is covered by ANSI B16.5 only in sizes through 3 inch, over 3" is at the manufacturer's option.
Specifications Approx Weight
19.60 lbs
Specifications Bolt Circle Diameter
8.50 inches
Specifications Bore B1
5.05 inches
Specifications Diameter At Base Of Hub X
6.44 inches
Specifications Diameter Of Bolts
3/4 inches
Specifications Diameter Of Holes
0.88 inches
Specifications Diameter Of Hub At Bevel A
5.56 inches
Specifications Length Thru Hub T1
3.50 inches
Specifications Machine Bolt Length Raised Face
3.25 inches
Specifications Nominal Pipe Size
5 inches
Specifications Number Of Holes
8
Specifications Od Of Raised Face G
7.31 inches
Specifications Outside Diameter D
10.00 inches
Specifications Stud Bolt Length Raised Face
3.75 inches
Specifications Stud Bolt Length Ring Joint
4.25 inches
Specifications Thickness T
0.94 inches
