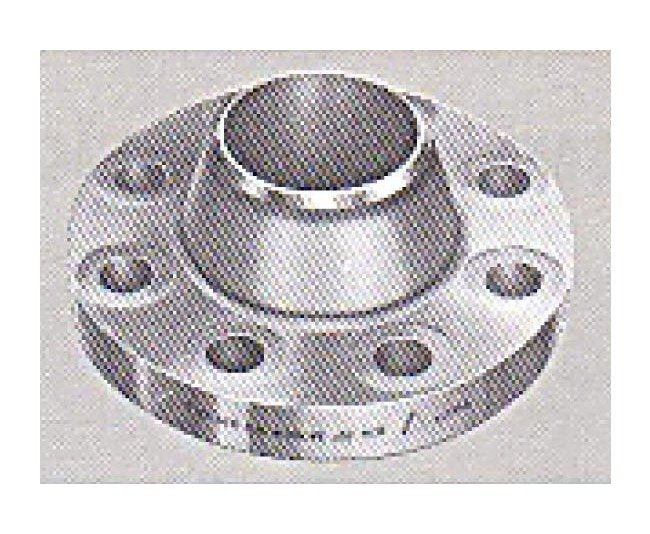

Premium Class 150 Welding Neck Flange, 24", ANSI B16.5 compliant
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Class 150 Welding Neck Flange - 24 inches
$599.99
Quantity: 1
Claim Your Seller Account
Class 150 Welding Neck Flange - 24 inches
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Class 150 Welding Neck Flange in 24 inches is designed for durable and secure pipe connections. Manufactured with precision, featuring specifications like a 32.00-inch outside diameter, 1.88-inch thickness, and a sturdy 263.80 lbs weight, this flange ensures reliable performance in industrial settings. Compliant with ANSI B16.5 standards and suitable for various applications, this flange offers exceptional quality and longevity.
Product Specifications
Features 0

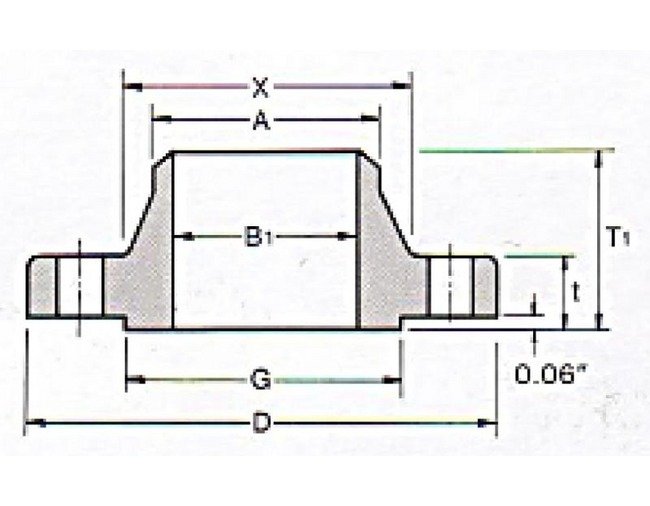

Class 150 flanges except Lap Joint will be furnished with 0.06" raised face, which is included in 'Thickness' (t) and 'Length through Hub' (T1), (T2).For Slip-on, Threaded, Socket Welding and Lap Joint Flanges, the hubs can be shaped either vertical from base to top or tapered within the limits of 7 degreesBlind Flanges may be made with the same hub as that used for Slip-On Flanges or without hub. The gasket surface and backside (bearing surface for bolting) are made parallel within 1 degree. To accomplish parallelism, spot facing is carried out according to MSS SP-9, without reducing thickness (t).Depth of Socket (Y) is covered by ANSI B16.5 only in sizes through 3 inch, over 3" is at the manufacturer's option.
Specifications Approx Weight
263.80 lbs
Specifications Bolt Circle Diameter
29.50 inches
Specifications Bore B1
23.25 inches
Specifications Diameter At Base Of Hub X
26.12 inches
Specifications Diameter Of Bolts
1 1/4 inches
Specifications Diameter Of Holes
1.38 inches
Specifications Diameter Of Hub At Bevel A
24.00 inches
Specifications Length Thru Hub T1
6.00 inches
Specifications Machine Bolt Length Raised Face
6.00 inches
Specifications Nominal Pipe Size
24 inches
Specifications Number Of Holes
20
Specifications Od Of Raised Face G
27.25 inches
Specifications Outside Diameter D
32.00 inches
Specifications Stud Bolt Length Raised Face
6.75 inches
Specifications Stud Bolt Length Ring Joint
7.25 inches
Specifications Thickness T
1.88 inches
