Class 1500 NPT Threaded Ball Valve 1-1/2" Port Size - 3600S Series
Class 1500 NPT Threaded Ball Valve 1-1/2" Port Size - 3600S Series
SKU:360-6c7a39
High-pressure 3600S Series Class 1500 NPT Ball Valve for industrial applications. Seal welded, fire-safe, and ASME B16.34 compliant.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Class 1500 NPT Threaded Ball Valve 1-1/2" Port Size - 3600S Series
$399.99
Quantity: 1
Claim Your Seller Account
Class 1500 NPT Threaded Ball Valve 1-1/2" Port Size - 3600S Series
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

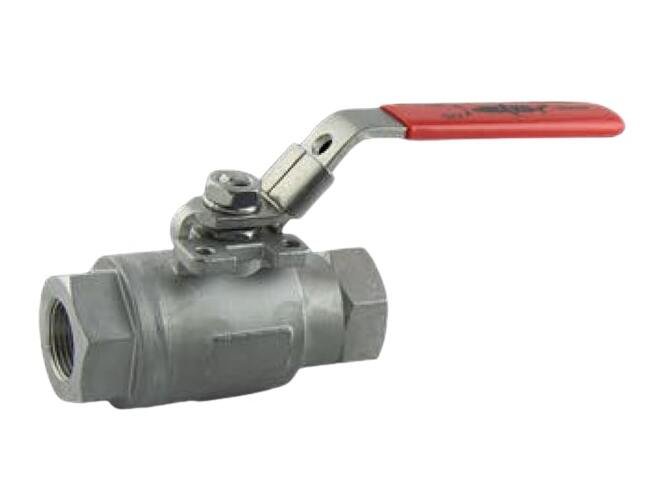

The 3600S Series Class 1500 NPT Threaded Ball Valve with a 1-1/2 inch port size is engineered for high-pressure applications with a pressure rating of 3600 psi. This two-piece ball valve features investment casting, fire-safe approval per API607 5th Ed., and compliance with ASME B16.34, ISO 5211, and NACE MR-0175 standards. The valve is seal welded, pressure tested to API 598, and designed for durability and reliable performance in demanding industrial environments.
Product Specifications
Features Features
Investment CastingWall Thickness - ASME B16.34 Class 1500Floating BallFire-Safe Approved Per API607 5th Ed.ISO 5211 Mounting PadLocking Lever HandleSeal WeldedPressure Tested to API 598
Technical Specs Dimension A
1.50 in
Technical Specs Dimension B
5.3 in
Technical Specs Dimension C
4.34 in
Technical Specs Dimension D
10.16 in
Technical Specs Dimension E
3.85 in
Technical Specs Dimension F
2.50 in
Technical Specs Dimension G
0.34 in
Technical Specs Dimension H
0.392 in
Technical Specs Dimension J
0.623 in
Technical Specs Dimension K
2.756 in
Technical Specs Flow Coefficients Cv
140
Technical Specs Industry Standards
American Society of Mechanical Engineers (ASME) B16.34 | International Organization for Standardization (ISO 5211) | National Association of Corrosion Engineers (NACE) MR-0175 Compliant
Technical Specs Maximum Torque
750 in·lb
Technical Specs Mounting Pad Sizes
F07
Technical Specs Port Configuration
Full Port
Technical Specs Port Size
1-1/2 in
Technical Specs Pressure Rating
3600 psi
Technical Specs Pressure Test
BT2HA 36
Technical Specs Pressure Test For Seal Test Water
3300 psi
Technical Specs Pressure Test For Seat Test Air
85 psi
Technical Specs Pressure Test For Shell Test Water
4500 psi
Technical Specs Thread Size L
5/16 in.-18
Technical Specs Thread Type
National Pipe Thread (NPT) | Unified National Coarse Thread (UNC)
Technical Specs Weight
4.590 kg
