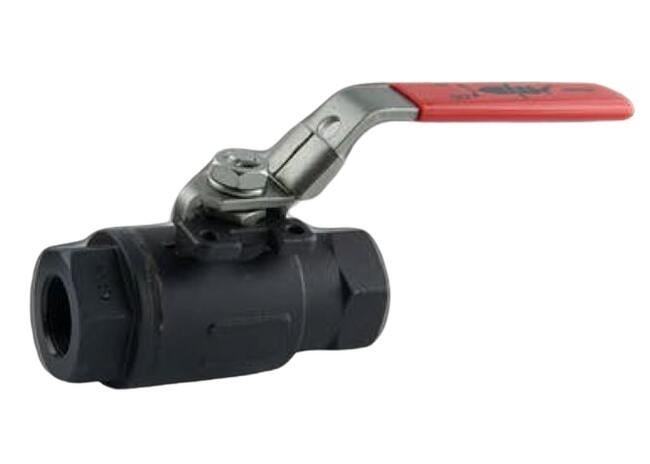

Class 1500 NPT Threaded Ball Valve, 1/2 in Port Size, 3600C Series
Class 1500 NPT Threaded Ball Valve, 1/2 in Port Size, 3600C Series
SKU:360-207fc2
Premium 1/2 in NPT Ball Valve, Class 1500, ASME & ISO Compliant
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Class 1500 NPT Threaded Ball Valve, 1/2 in Port Size, 3600C Series
$89.99
Quantity: 1
Claim Your Seller Account
Class 1500 NPT Threaded Ball Valve, 1/2 in Port Size, 3600C Series
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3600C Series Class 1500 NPT Threaded Ball Valve features a full port design, pressure rating of 3600 psi, and investment casting for durability. With compliance to ASME B16.34, ISO 5211, and NACE MR-0175 standards, this valve is fire-safe approved, seal welded, and pressure tested for reliable performance. The floating ball, locking lever handle, and API598 testing make it ideal for industrial applications demanding precision and safety.
Product Specifications
Features Features
Investment CastingWall Thickness - ASME B16.34 Class 1500Floating BallFire-Safe Approved Per API607 5th Ed.ISO 5211 Mounting PadLocking Lever HandleSeal WeldedPressure Tested to API 598
Technical Specs Dimension A
0.50 in
Technical Specs Dimension B
4.0 in
Technical Specs Dimension C
2.22 in
Technical Specs Dimension D
5.00 in
Technical Specs Dimension E
1.64 in
Technical Specs Dimension F
1.00 in
Technical Specs Dimension G
0.18 in
Technical Specs Dimension H
0.195 in
Technical Specs Dimension J
0.311 in
Technical Specs Dimension K
1.417 in
Technical Specs Flow Coefficients Cv
16
Technical Specs Industry Standards
American Society of Mechanical Engineers (ASME) B16.34 | International Organization for Standardization (ISO 5211) | National Association of Corrosion Engineers (NACE) MR-0175 Compliant
Technical Specs Maximum Torque
75 in·lb
Technical Specs Mounting Pad Sizes
F03
Technical Specs Port Configuration
Full Port
Technical Specs Port Size
1/2 in
Technical Specs Pressure Rating
3600 psi
Technical Specs Pressure Test
BT2HA 36
Technical Specs Pressure Test For Seal Test Water
3300 psi
Technical Specs Pressure Test For Seat Test Air
85 psi
Technical Specs Pressure Test For Shell Test Water
4500 psi
Technical Specs Thread Size L
1/4 in.-20
Technical Specs Thread Type
National Pipe Thread (NPT) | Unified National Coarse Thread (UNC)
Technical Specs Weight
0.737 kg
