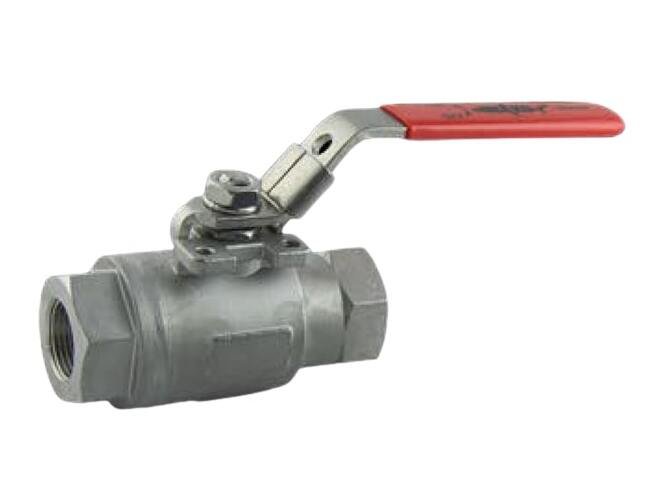

Class 1500 NPT Threaded Ball Valve - 3/4 Inch Port Size
Class 1500 NPT Threaded Ball Valve - 3/4 Inch Port Size
SKU:360-f3e23e
High-pressure 3/4" Class 1500 NPT Threaded Ball Valve with full port design, ASME B16.34 compliant, ideal for demanding applications.
Regular price
$124.99
Regular price
Sale price
$124.99
Unit price
per
Initiate Order
Class 1500 NPT Threaded Ball Valve - 3/4 Inch Port Size
$124.99
Quantity: 1
Claim Your Seller Account
Class 1500 NPT Threaded Ball Valve - 3/4 Inch Port Size
$124.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3600S Series Class 1500 NPT Threaded Ball Valve is designed for high-pressure applications, with a full port configuration and a pressure rating of 3600 psi. This two-piece ball valve features investment casting, fire-safe approval per API607 5th Ed., and ISO 5211 mounting pad for easy automation. With compliance to ASME B16.34, ISO 5211, and NACE MR-0175 standards, this valve is seal welded, pressure tested, and offers reliable performance in demanding environments.
Product Specifications
Features Features
Investment CastingWall Thickness - ASME B16.34 Class 1500Floating BallFire-Safe Approved Per API607 5th Ed.ISO 5211 Mounting PadLocking Lever HandleSeal WeldedPressure Tested to API 598
Technical Specs Dimension A
0.75 in
Technical Specs Dimension B
4.3 in
Technical Specs Dimension C
2.89 in
Technical Specs Dimension D
5.83 in
Technical Specs Dimension E
2.13 in
Technical Specs Dimension F
1.32 in
Technical Specs Dimension G
0.21 in
Technical Specs Dimension H
0.274 in
Technical Specs Dimension J
0.436 in
Technical Specs Dimension K
1.654 in
Technical Specs Flow Coefficients Cv
32
Technical Specs Industry Standards
American Society of Mechanical Engineers (ASME) B16.34 | International Organization for Standardization (ISO 5211) | National Association of Corrosion Engineers (NACE) MR-0175 Compliant
Technical Specs Maximum Torque
120 in·lb
Technical Specs Mounting Pad Sizes
F04
Technical Specs Port Configuration
Full Port
Technical Specs Port Size
3/4 in
Technical Specs Pressure Rating
3600 psi
Technical Specs Pressure Test
BT2HA 36
Technical Specs Pressure Test For Seal Test Water
3300 psi
Technical Specs Pressure Test For Seat Test Air
85 psi
Technical Specs Pressure Test For Shell Test Water
4500 psi
Technical Specs Thread Size L
1/4 in.-20
Technical Specs Thread Type
National Pipe Thread (NPT) | Unified National Coarse Thread (UNC)
Technical Specs Weight
1.301 kg
