Class-2 Power Control Transformers - 24V, 50V·A
Class-2 Power Control Transformers - 24V, 50V·A
SKU:POW-9a7b8e
Ensure safe and efficient power control with our Class-2 Transformers - 24V, 50V·A. Tamper-resistant shrouds and easy mounting for industrial use.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Class-2 Power Control Transformers - 24V, 50V·A
$99.99
Quantity: 1
Claim Your Seller Account
Class-2 Power Control Transformers - 24V, 50V·A
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

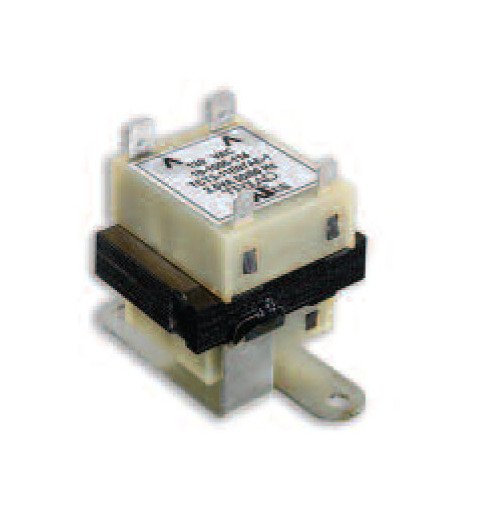

The Class-2 Power Control Transformers are designed for exceptional safety and ease of mounting in industrial settings. Featuring tamper-resistant shrouds and a steel bracket for secure installation, these transformers ensure reliable power distribution. With primary input voltage options of 120V and 240V, and a secondary output voltage of 24V, they deliver a maximum power of 50V·A. The transformers are equipped with lugs for convenient connections and meet stringent industry standards for optimal performance and durability.

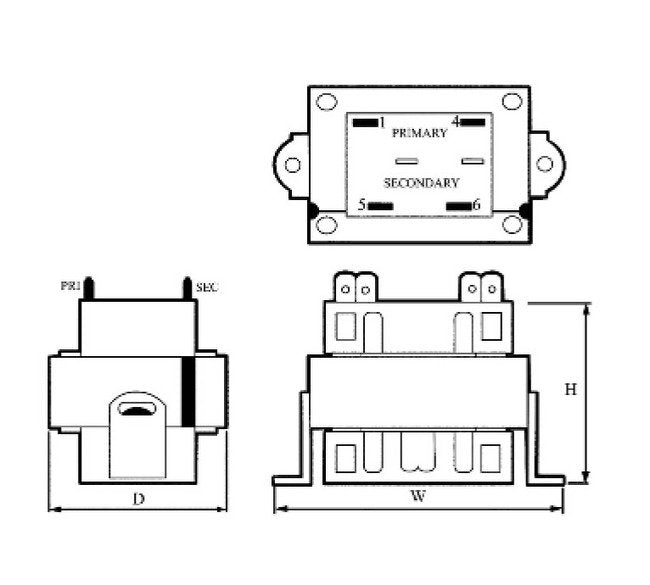

Product Specifications
Specifications Connections
Lugs
Specifications Depth D
57 mm
Specifications Height H
71.5 mm
Specifications Input Frequency
50 Hz | 60 Hz
Specifications Maximum Power
50 V·A
Specifications Mounting Dimensions
79.38 mm
Specifications Primary Input Voltage
120 V | 240 V
Specifications Secondary Output Voltage
24 V
Specifications Weight
2.00 lb
Specifications Width W
95.0 mm
