Class-2 Power Control Transformers - High Efficiency 40 VA
Class-2 Power Control Transformers - High Efficiency 40 VA
SKU:POW-618e54
Enhanced safety features & precise dimensions - Class-2 Power Control Transformers for efficient power control.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Class-2 Power Control Transformers - High Efficiency 40 VA
$89.99
Quantity: 1
Claim Your Seller Account
Class-2 Power Control Transformers - High Efficiency 40 VA
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

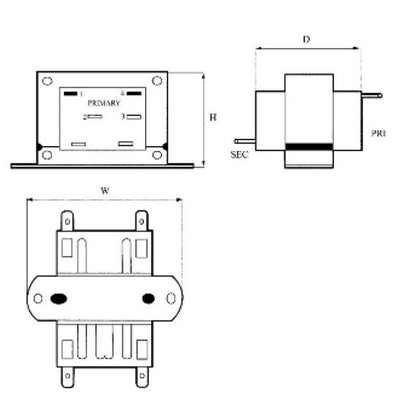

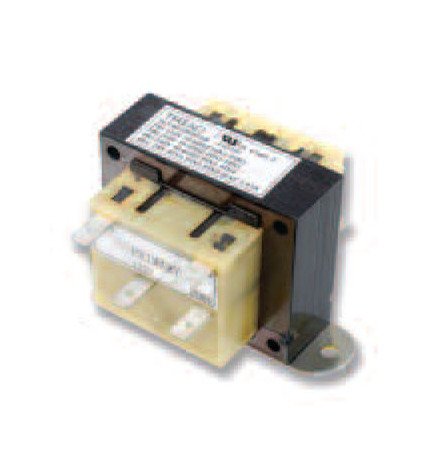

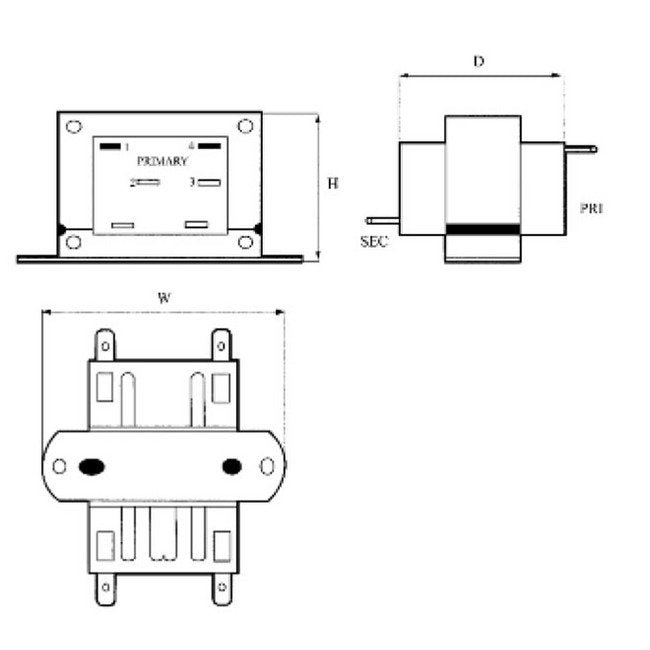

The Class-2 Power Control Transformers by Triad are designed with top-notch safety features, including tamper-resistant shrouds for enhanced protection. The steel bracket welded at the bottom ensures easy and secure mounting. With primary input voltage options of 208V or 240V and a secondary output voltage of 12V, these transformers pack a maximum power of 40 VA. Equipped with lugs for easy connections, these transformers have precise dimensions (H: 56.5mm, W: 92.5mm, D: 61mm) and a mounting dimension of 79.38mm. Suitable for both 50Hz and 60Hz input frequencies, these transformers are lightweight at 1.50 lb, making them ideal for a range of applications.
Product Specifications
Specifications Connections
Lugs
Specifications Depth D
61 mm
Specifications Height H
56.5 mm
Specifications Input Frequency
50 Hz | 60 Hz
Specifications Maximum Power
40 V·A
Specifications Mounting Dimensions
79.38 mm
Specifications Primary Input Voltage
208 V | 240 V
Specifications Secondary Output Voltage
12 V
Specifications Weight
1.50 lb
Specifications Width W
92.5 mm
