Class-2 Power Control Transformers - Safety Shrouded, Mounting Bracket

Name: Class-2 Power Control Transformers - Safety Shrouded, Mounting Bracket
Brand: Triad Magnetics
SKU: POW-b72127
Price: 49.99 USD
Availability: OutOfStock

SKU:POW-b72127

Discover Triad's Class-2 Power Control Transformers for safe, easy mounting.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

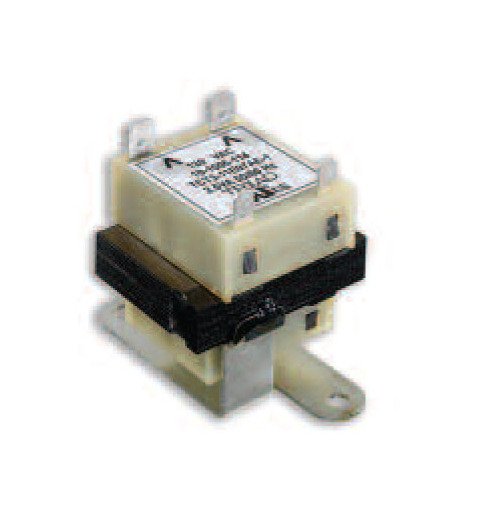

The Class-2 Power Control Transformers from Triad are designed with tamper-resistant shrouds for enhanced safety and a steel bracket welded at the bottom for easy mounting. With a primary input voltage of 120 V and a secondary output voltage of 12 V, these transformers deliver a maximum power of 50 VA. Featuring lugs for connections, compact dimensions, and a weight of 2.00 lb, these transformers provide reliable power control solutions for various applications. Compliant with industry standards, they ensure efficient performance and peace of mind.

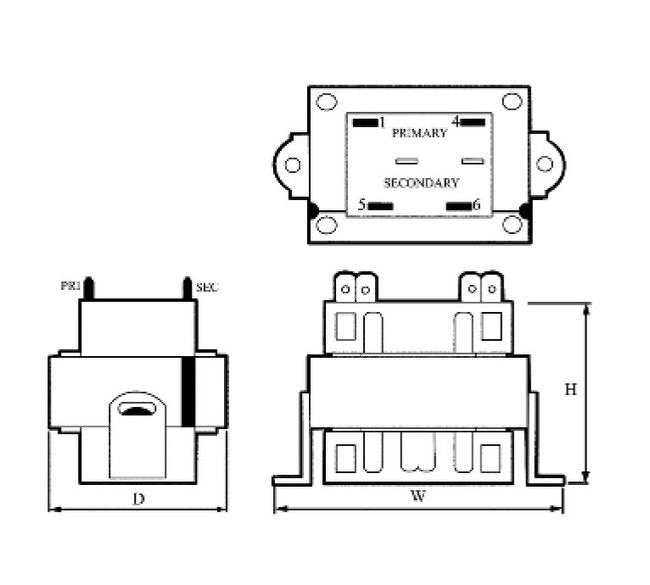

Product Specifications

Specifications Connections

Lugs

Specifications Depth D

57 mm

Specifications Height H

71.5 mm

Specifications Input Frequency

50 Hz | 60 Hz

Specifications Maximum Power

50 VÂ·A

Specifications Mounting Dimensions

79.38 mm

Specifications Primary Input Voltage

120 V

Specifications Secondary Output Voltage

12 V

Specifications Weight

2.00 lb

Specifications Width W

95.0 mm

Class-2 Power Control Transformers - Safety Shrouded, Mounting Bracket
