Class-2 Power Control Transformers - Tamper Resistant Shrouds, Steel Mounting Bracket
Class-2 Power Control Transformers - Tamper Resistant Shrouds, Steel Mounting Bracket
SKU:POW-15846c
Enhanced Class-2 Power Control Transformers with tamper-resistant shrouds and easy mounting bracket.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Class-2 Power Control Transformers - Tamper Resistant Shrouds, Steel Mounting Bracket
$49.99
Quantity: 1
Claim Your Seller Account
Class-2 Power Control Transformers - Tamper Resistant Shrouds, Steel Mounting Bracket
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

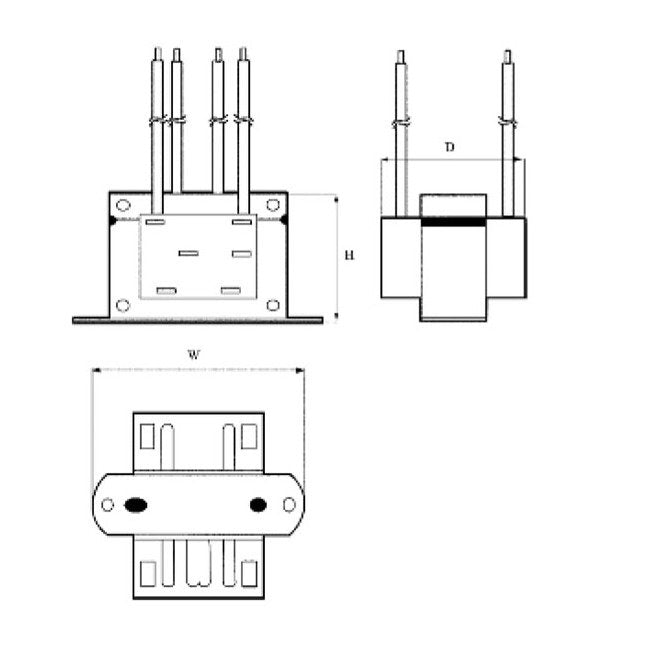

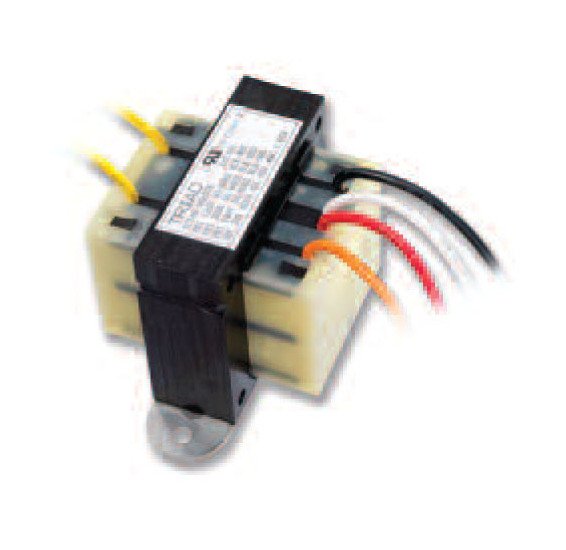

The Class-2 Power Control Transformers by Triad feature tamper-resistant shrouds ensuring safety and a steel bracket for easy mounting. With primary input voltage options of 120V, 208V, and 240V, and a secondary output voltage of 24V, these transformers provide reliable power control. Designed with a maximum power of 50 VA and convenient lead connections, they offer versatility and efficiency. Measuring 56.5mm (H) x 92.5mm (W) x 71.5mm (D) with a mounting dimension of 79.38mm, these transformers are compact yet powerful. Ideal for various applications requiring stable power supply.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Connections
Leads
Specifications Depth D
71.5 mm
Specifications Height H
56.5 mm
Specifications Input Frequency
50 Hz | 60 Hz
Specifications Maximum Power
50 V·A
Specifications Mounting Dimensions
79.38 mm
Specifications Primary Input Voltage
120 V | 208 V | 240 V
Specifications Secondary Output Voltage
24 V
Specifications Weight
2.00 lb
Specifications Width W
92.5 mm
