Class-2 Power Control Transformers - Triad
Class-2 Power Control Transformers - Triad
SKU:POW-eb141c
Triad Class-2 Power Control Transformers: Safe, efficient, and compliant power control solution for diverse applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Class-2 Power Control Transformers - Triad
$49.99
Quantity: 1
Claim Your Seller Account
Class-2 Power Control Transformers - Triad
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

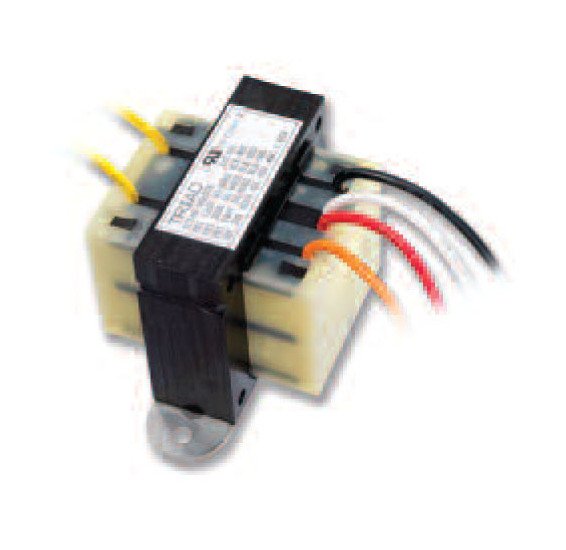

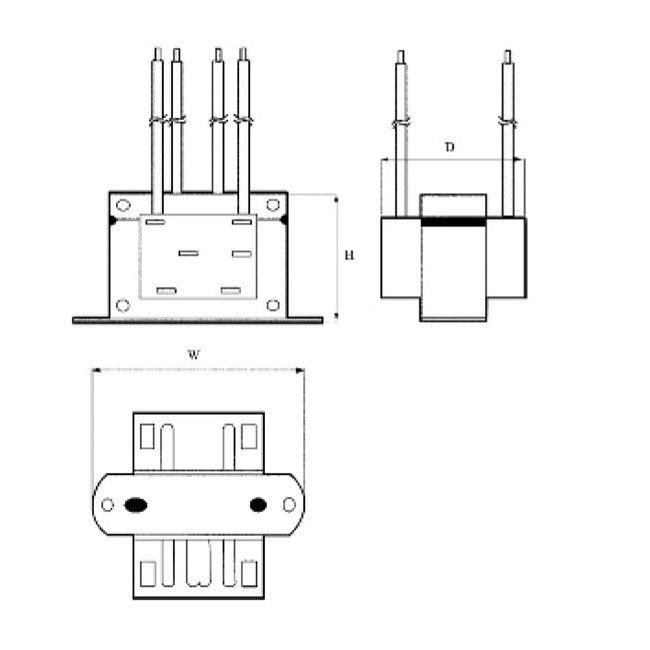

The Triad Class-2 Power Control Transformers are designed with tamper-resistant shrouds and a steel bracket for secure mounting. With a primary input voltage of 240V and a secondary output voltage of 24V, these transformers deliver a maximum power of 50 VA. Featuring leads for connections and compact dimensions of H56.5mm x W92.5mm x D71.5mm, these transformers are ideal for various applications. Compliant with industry safety standards, the Triad transformers ensure reliable and safe power control.
Product Specifications
Specifications Connections
Leads
Specifications Depth D
71.5 mm
Specifications Height H
56.5 mm
Specifications Input Frequency
50 Hz | 60 Hz
Specifications Maximum Power
50 V·A
Specifications Mounting Dimensions
79.38 mm
Specifications Primary Input Voltage
240 V
Specifications Secondary Output Voltage
24 V
Specifications Weight
2.00 lb
Specifications Width W
92.5 mm
