Class-2 Power Control Transformers - Triad Control Transformers with Tamper-Resistant Shrouds
Class-2 Power Control Transformers - Triad Control Transformers with Tamper-Resistant Shrouds
SKU:POW-23ad1e
Triad Class-2 Power Control Transformers - Tamper-resistant with secure connections, ideal for various applications.
Regular price
$78.99
Regular price
Sale price
$78.99
Unit price
per
Initiate Order
Class-2 Power Control Transformers - Triad Control Transformers with Tamper-Resistant Shrouds
$78.99
Quantity: 1
Claim Your Seller Account
Class-2 Power Control Transformers - Triad Control Transformers with Tamper-Resistant Shrouds
$78.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

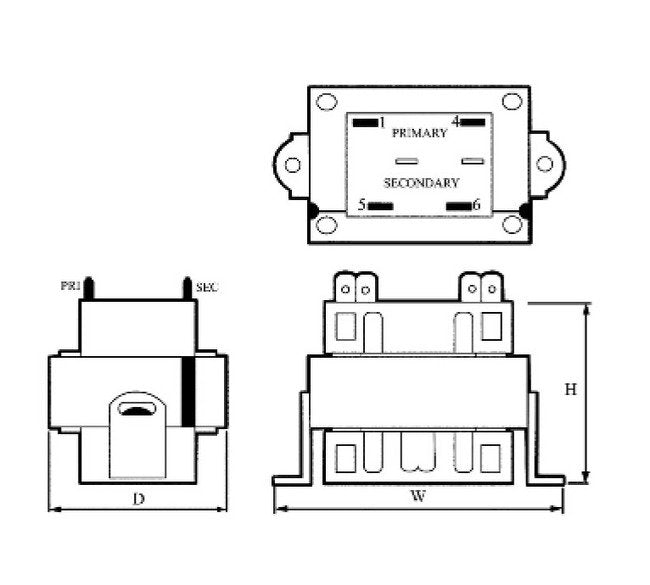

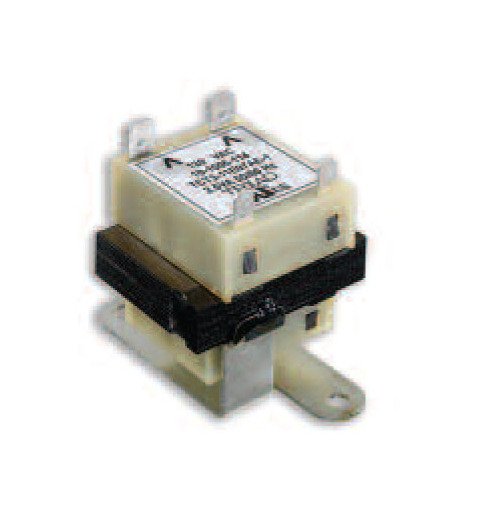

The Class-2 Power Control Transformers by Triad are engineered with tamper-resistant shrouds to ensure safety in all settings. Featuring a durable steel bracket welded to the bottom for easy mounting, these transformers offer reliable performance. With primary input voltage of 240 V, secondary output voltage of 24 V, and maximum power of 40 V·A, they provide efficient power control. Designed with lugs for secure connections, dimensions of H: 62.5 mm, W: 95.0 mm, D: 57 mm, and weight of 1.50 lb, these transformers are ideal for various applications. The mounting dimensions of 79.38 mm, input frequency options of 50 Hz and 60 Hz, make them versatile and adaptable for different requirements.
Product Specifications
Specifications Connections
Lugs
Specifications Depth D
57 mm
Specifications Height H
62.5 mm
Specifications Input Frequency
50 Hz | 60 Hz
Specifications Maximum Power
40 V·A
Specifications Mounting Dimensions
79.38 mm
Specifications Primary Input Voltage
240 V
Specifications Secondary Output Voltage
24 V
Specifications Weight
1.50 lb
Specifications Width W
95.0 mm
