Class-2 Power Control Transformers - Triad Safety Shrouded Series
Class-2 Power Control Transformers - Triad Safety Shrouded Series
SKU:POW-a95a42
Enhance safety and efficiency with our Class-2 Power Control Transformers - Triad Safety Shrouded Series. Ideal for secure and easy mounting, with voltage outputs perfect for various applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Class-2 Power Control Transformers - Triad Safety Shrouded Series
$59.99
Quantity: 1
Claim Your Seller Account
Class-2 Power Control Transformers - Triad Safety Shrouded Series
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

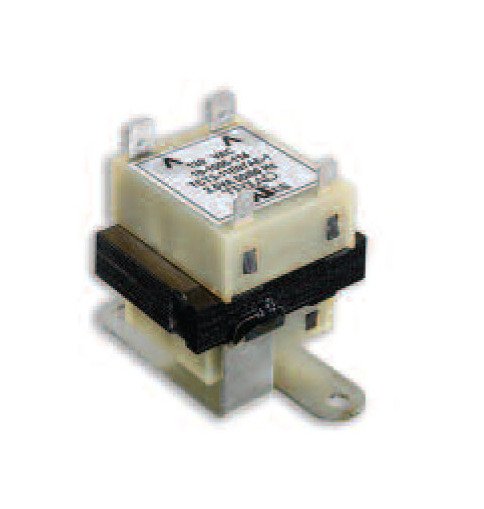

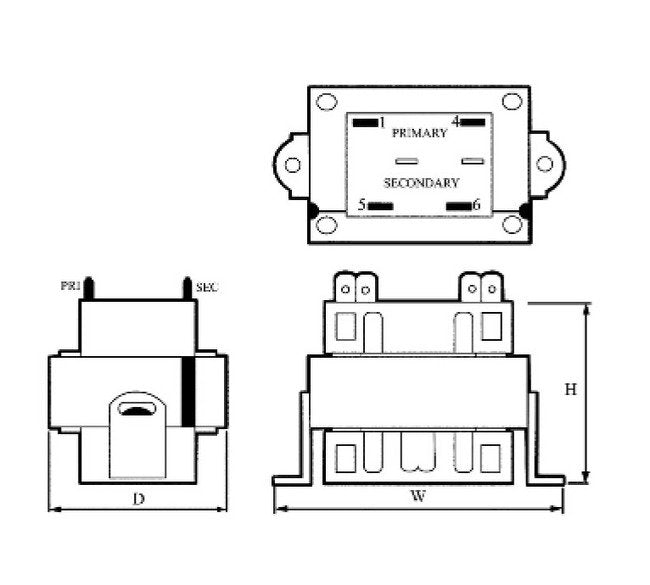

The Class-2 Power Control Transformers from our Triad Safety Shrouded Series are designed with tamper-resistant shrouds for enhanced safety and feature a welded steel bracket for easy mounting. With a primary input voltage of 120 V and secondary output voltage of 24 V, these transformers offer a maximum power of 50 VA. The transformers come with lugs for convenient connections, measuring 71.5mm in height, 95.0mm in width, and 57mm in depth. With a sturdy mounting dimension of 79.38mm and a weight of 2.00 lb, these transformers ensure reliable performance for a range of applications.
Product Specifications
Specifications Connections
Lugs
Specifications Depth D
57 mm
Specifications Height H
71.5 mm
Specifications Input Frequency
50 Hz | 60 Hz
Specifications Maximum Power
50 V·A
Specifications Mounting Dimensions
79.38 mm
Specifications Primary Input Voltage
120 V
Specifications Secondary Output Voltage
24 V
Specifications Weight
2.00 lb
Specifications Width W
95.0 mm
