Class-2 Power Control Transformers - Triad Tamper Resistant Series
Class-2 Power Control Transformers - Triad Tamper Resistant Series
SKU:POW-191794
Enhanced safety and easy mounting with Triad Tamper Resistant Class-2 Power Control Transformers. Ideal for efficient power control in compact spaces.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Class-2 Power Control Transformers - Triad Tamper Resistant Series
$34.99
Quantity: 1
Claim Your Seller Account
Class-2 Power Control Transformers - Triad Tamper Resistant Series
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

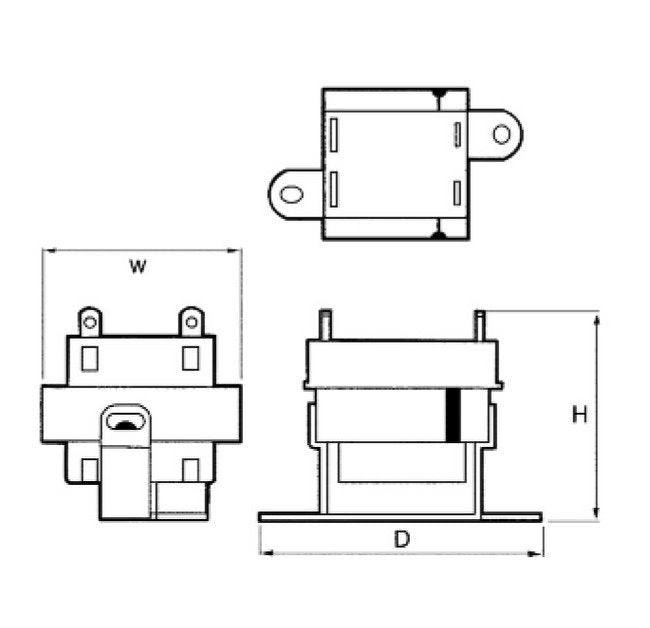

The Class-2 Power Control Transformers in the Triad Tamper Resistant Series are designed with a focus on safety and ease of installation. Featuring tamper-resistant shrouds and a steel bracket welded for secure mounting, these transformers ensure optimal performance and reliability. With a primary input voltage of 120 V, secondary output voltage of 10 V, and maximum power capacity of 3 VA, they offer efficient power control solutions for various applications. The compact design with dimensions of 54mm (H) x 42.5mm (W) x 60mm (D) and lugs for connections makes them ideal for space-constrained installations.
Product Specifications
Specifications Connections
Lugs
Specifications Depth D
60 mm
Specifications Height H
54 mm
Specifications Input Frequency
50 Hz | 60 Hz
Specifications Maximum Power
3 V·A
Specifications Mounting Dimensions
48.77 mm
Specifications Primary Input Voltage
120 V
Specifications Secondary Output Voltage
10 V
Specifications Weight
0.50 lb
Specifications Width W
42.5 mm
