Class-2 Power Control Transformers with Tamper-Resistant Shrouds
Class-2 Power Control Transformers with Tamper-Resistant Shrouds
SKU:POW-ac424d
Upgrade with our Class-2 Power Control Transformers for safe, reliable power management in compact dimensions.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Class-2 Power Control Transformers with Tamper-Resistant Shrouds
$59.99
Quantity: 1
Claim Your Seller Account
Class-2 Power Control Transformers with Tamper-Resistant Shrouds
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

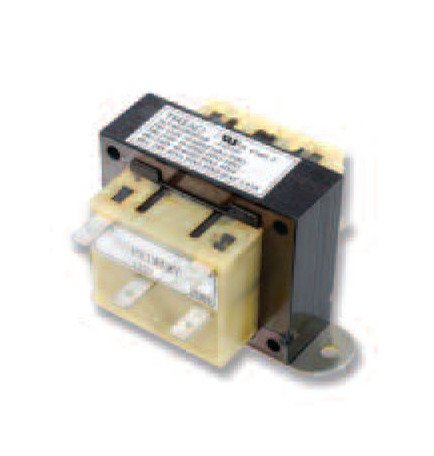

Enhance your power control systems with our Class-2 Power Control Transformers featuring tamper-resistant shrouds for enhanced safety. The steel bracket welded to the transformer's bottom ensures convenient mounting. With primary input voltages ranging from 120V to 240V, secondary output voltage of 24V, and maximum power of 40 VA, this transformer offers reliable performance in a compact design. The lugs for connections, compact dimensions, and compliance with safety standards make it an ideal choice for both consumer and institutional applications.

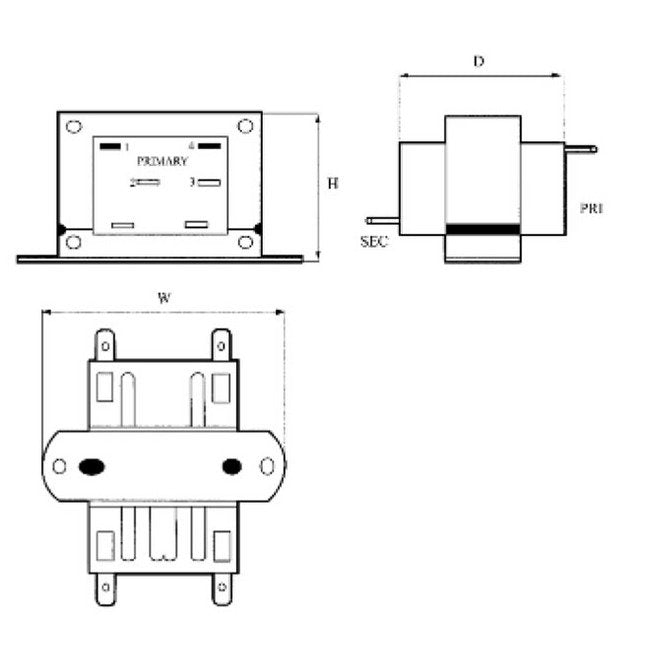

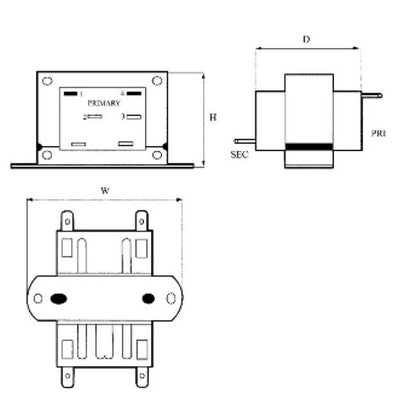

Product Specifications
Specifications Connections
Lugs
Specifications Depth D
61 mm
Specifications Height H
56.5 mm
Specifications Input Frequency
50 Hz | 60 Hz
Specifications Maximum Power
40 V·A
Specifications Mounting Dimensions
79.38 mm
Specifications Primary Input Voltage
120 V | 208 V | 240 V
Specifications Secondary Output Voltage
24 V
Specifications Weight
1.50 lb
Specifications Width W
92.5 mm
