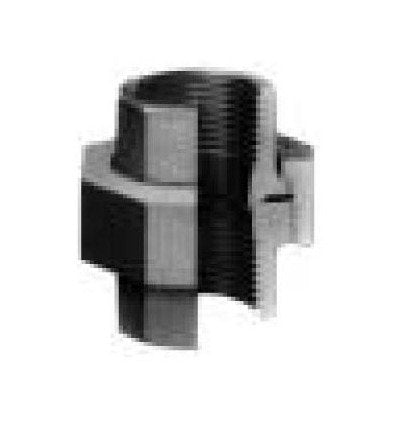

Class 250 Malleable Iron Union - 3/4 NPS
Class 250 Malleable Iron Union - 3/4 NPS
SKU:FIT-94a06f
Anvil Class 250 Malleable Iron Union - ASME B16.39 Compliant, UL Listed, 250 lb WSP, 500 lb WOG, 3/4 NPS
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Class 250 Malleable Iron Union - 3/4 NPS
$12.99
Quantity: 1
Claim Your Seller Account
Class 250 Malleable Iron Union - 3/4 NPS
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Class 250 Malleable Iron Union by Anvil sets the standard for durability and compliance. Designed to conform to ASME B16.39 and AAR requirements, this union boasts a 250 lb working steam pressure and 500 lb rating for water, oil, and gas applications. With precise dimensions meeting ASME B16.39 for Class 250, this union ensures reliable performance. UL Listed for added assurance, this union is compatible with Copper and Copper Alloy to Iron connections, offering a seamless fit with a weight of 0.36 kg (Black) and 0.37 kg (Galvanized), making it an ideal choice for industrial applications.
Product Specifications
Specifications Class
250
Specifications Dn
20
Specifications End To End
57 mm
Specifications Nps
3/4
Specifications Used With
Copper | Copper Alloy to Iron
Specifications Weight Black
0.36 kg
Specifications Weight Galv
0.37 kg
