Class 250 Malleable Iron Union - Conforming to ASME Standards
Class 250 Malleable Iron Union - Conforming to ASME Standards
SKU:FIT-463edc
Premium Class 250 Malleable Iron Union - ASME B 16.39 Compliant, UL Listed - Durable and Reliable Fitting
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Class 250 Malleable Iron Union - Conforming to ASME Standards
$25.99
Quantity: 1
Claim Your Seller Account
Class 250 Malleable Iron Union - Conforming to ASME Standards
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

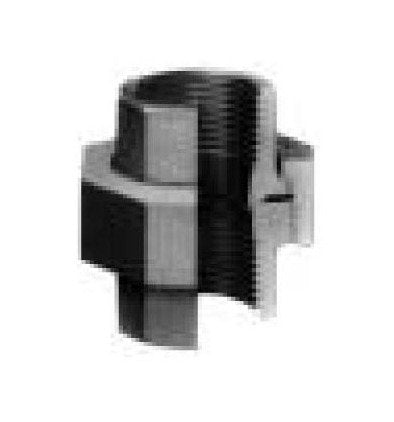

The Class 250 Malleable Iron Union from Anvil is a high-quality fitting designed to meet the rigorous standards set by ASME B 16.39 and the AAR. This union is built for durability and reliability, with dimensions complying with ASME B 16.39 for Class 150, 250, and 300 Unions. With a 250 lb WSP and 500 lb WOG non-shock rating, this union offers exceptional performance. It is UL Listed and suitable for use with Copper or Copper Alloy to Iron connections, weighing only 0.58 kg in black and 0.59 kg when galvanized. Trust Anvil for top-tier malleable iron fittings that deliver on both quality and compliance.
Product Specifications
Specifications Class
250
Specifications Dn
25
Specifications End To End
65 mm
Specifications Nps
1
Specifications Used With
Copper | Copper Alloy to Iron
Specifications Weight Black
0.58 kg
Specifications Weight Galv
0.59 kg
