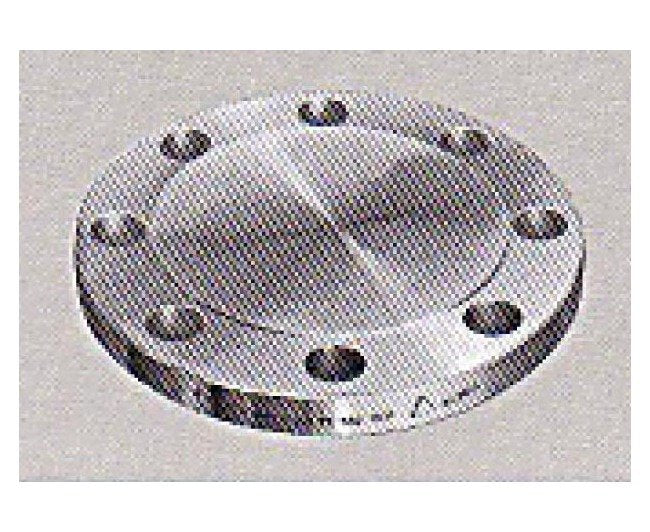

Class 300 Blind Flange, 24-inch
Class 300 Blind Flange, 24-inch
SKU:FIT-df65e4
High-quality Class 300 Blind Flange, 24-inch size, with 0.06" raised face and precise machining for secure sealing and optimal parallelism.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Class 300 Blind Flange, 24-inch
$899.99
Quantity: 1
Claim Your Seller Account
Class 300 Blind Flange, 24-inch
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Class 300 Blind Flange, 24-inch size, is an essential component in industrial piping systems, crafted with precision to meet stringent standards. Featuring a 0.06" raised face for a secure seal, this blind flange offers versatile installation options with vertical or tapered hubs. The gasket and bolting surfaces are meticulously machined for optimal parallelism, in compliance with MSS SP-9. With a durable forged steel construction and a weight of 754.00 lbs, this blind flange ensures reliability and longevity in high-pressure applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features 0

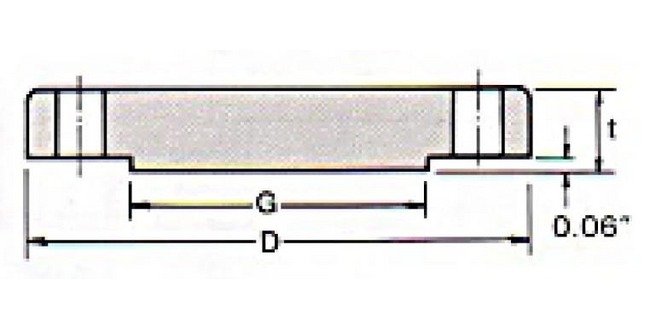

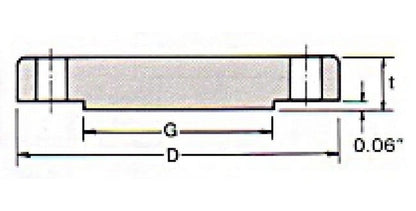

Class 300 flanges except Lap Joint will be furnished with 0.06" raised face, which is included in 'Thickness' (t) and 'Length through Hub' (T1), (T2).For Slip-on, Threaded, Socket Welding and Lap Joint Flanges, the hubs can be shaped either vertical from base to top or tapered within the limits of 7 degreesBlind Flanges may be made with the same hub as that used for Slip-On Flanges or without hub. The gasket surface and backside (bearing surface for bolting) are made parallel within 1 degree. To accomplish parallelism, spot facing is carried out according to MSS SP-9, without reducing thickness (t).Depth of Socket (Y) is covered by ANSI B16.5 only in sizes through 3 inch, over 3" is at the manufacturer's option.
Specifications Approx Weight
754.00 lbs
Specifications Bolt Circle Diameter
32.00 inches
Specifications Diameter Of Bolts
1 1/2 inches
Specifications Diameter Of Holes
1.62 inches
Specifications Machine Bolt Length Raised Face
8.00 inches
Specifications Nominal Pipe Size
24 inches
Specifications Number Of Holes
24
Specifications Od Of Raised Face G
27.25 inches
Specifications Outside Diameter D
36.00 inches
Specifications Stud Bolt Length Raised Face
9.00 inches
Specifications Stud Bolt Length Ring Joint
10.00 inches
Specifications Thickness T
2.75 inches
