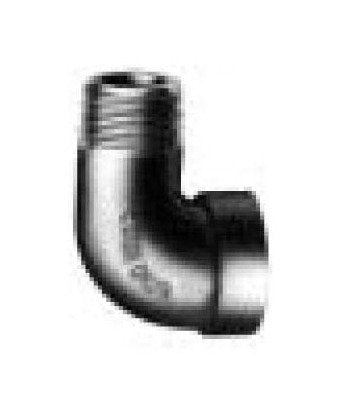

Class 300 Malleable Iron 90-Degree Street Elbow, 3/4 NPS
Class 300 Malleable Iron 90-Degree Street Elbow, 3/4 NPS
SKU:FIT-c0f020
Durable Class 300 Malleable Iron 90° Street Elbow for industrial use. Gas tested at 100 psi, precise dimensions, and reliable performance.
Regular price
$9.99
Regular price
Sale price
$9.99
Unit price
per
Initiate Order
Class 300 Malleable Iron 90-Degree Street Elbow, 3/4 NPS
$9.99
Quantity: 1
Claim Your Seller Account
Class 300 Malleable Iron 90-Degree Street Elbow, 3/4 NPS
$9.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

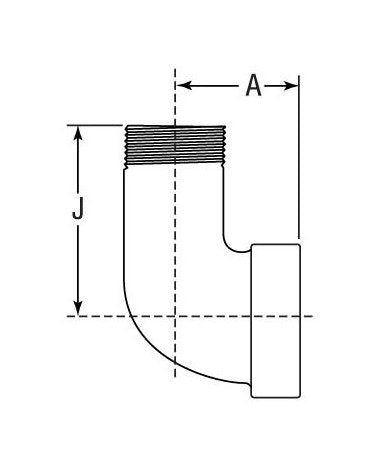

The Class 300 Malleable Iron 90-Degree Street Elbow in 3/4 NPS diameter is a durable fitting ideal for industrial applications. Gas tested at 100 psi (6.9 bar), this elbow ensures reliable performance under pressure. With precise dimensions of 37.00 mm (A) and 56 mm (J), and weights of 0.31 kg (Black) and 0.32 kg (Galv.), this fitting guarantees secure connections and easy installation.
Product Specifications
Specifications Dimension A
37.00 mm
Specifications Dimension J
56 mm
Specifications Dn
20
Specifications Nps
3/4
Specifications Weight Black
0.31 kg
Specifications Weight Galv
0.32 kg
