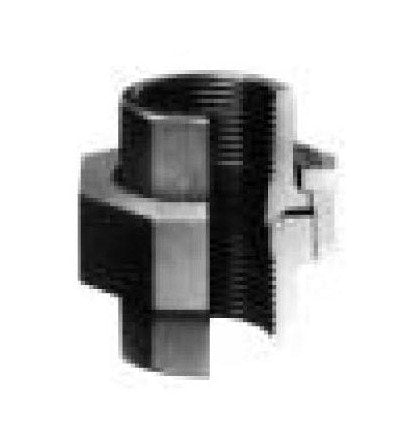

Class 300 Malleable Iron Union - 4" NPS
Class 300 Malleable Iron Union - 4" NPS
SKU:FIT-bba107
Premium Class 300 Malleable Iron Union - ASME B16.39 Compliant, 300lb WSP, 600lb WOG, 4" NPS
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Class 300 Malleable Iron Union - 4" NPS
$45.99
Quantity: 1
Claim Your Seller Account
Class 300 Malleable Iron Union - 4" NPS
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Class 300 Malleable Iron Union by Anvil is a robust fitting designed to meet the highest industry standards. Conforming to ASME B 16.39 and AAR requirements, this union is suitable for a variety of applications. With dimensions compliant with ASME B 16.39 for Class 300 unions, it boasts a 300 lb WSP and 600 lb WOG non-shock rating. Suitable for Copper or Copper Alloy to Iron connections, this union is 124 mm end to end and weighs 8.00 kg in black finish or 8.10 kg in galvanized finish.
Product Specifications
Specifications Class
300
Specifications Dn
100
Specifications End To End
124 mm
Specifications Nps
4
Specifications Used With
Copper | Copper Alloy to Iron
Specifications Weight Black
8.00 kg
Specifications Weight Galv
8.10 kg
