Class 300 Slip-On Flange - 14"
Class 300 Slip-On Flange - 14"
SKU:FIT-781d27
Premium Class 300 Slip-On Flange - 14" for secure and reliable fittings in industrial and government applications.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Class 300 Slip-On Flange - 14"
$299.99
Quantity: 1
Claim Your Seller Account
Class 300 Slip-On Flange - 14"
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

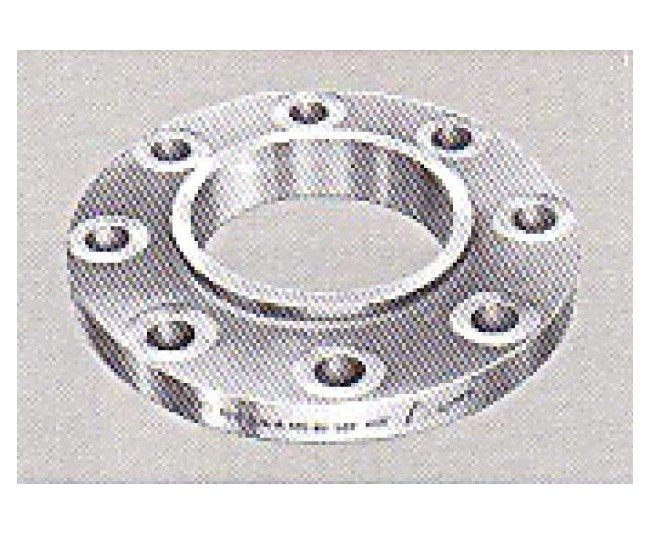

The Class 300 Slip-On Flange in 14 inches features precision-engineered specifications including an outside diameter of 23.00 inches, a raised face of 16.25 inches, and a sturdy thickness of 2.12 inches. Compliant with ANSI B16.5 standards, this flange ensures secure fittings with optimal performance. Whether for industrial or government procurement needs, this forged steel Slip-On flange guarantees reliability and longevity.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features 0

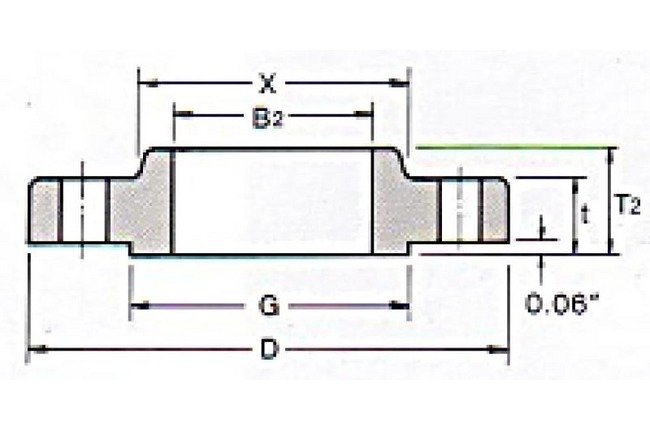

Class 300 flanges except Lap Joint will be furnished with 0.06" raised face, which is included in 'Thickness' (t) and 'Length through Hub' (T1), (T2).For Slip-on, Threaded, Socket Welding and Lap Joint Flanges, the hubs can be shaped either vertical from base to top or tapered within the limits of 7 degreesBlind Flanges may be made with the same hub as that used for Slip-On Flanges or without hub. The gasket surface and backside (bearing surface for bolting) are made parallel within 1 degree. To accomplish parallelism, spot facing is carried out according to MSS SP-9, without reducing thickness (t).Depth of Socket (Y) is covered by ANSI B16.5 only in sizes through 3 inch, over 3" is at the manufacturer's option.
Specifications Approx Weight
159.00 lbs
Specifications Bolt Circle Diameter
20.25 inches
Specifications Bore B2
14.14 inches
Specifications Diameter At Base Of Hub X
16.75 inches
Specifications Diameter Of Bolts
1 1/8 inches
Specifications Diameter Of Holes
1.25 inches
Specifications Length Thru Hub T2
3.00 inches
Specifications Machine Bolt Length Raised Face
6.25 inches
Specifications Nominal Pipe Size
14 inches
Specifications Number Of Holes
20
Specifications Od Of Raised Face G
16.25 inches
Specifications Outside Diameter D
23.00 inches
Specifications Stud Bolt Length Raised Face
7.00 inches
Specifications Stud Bolt Length Ring Joint
7.50 inches
Specifications Thickness T
2.12 inches
