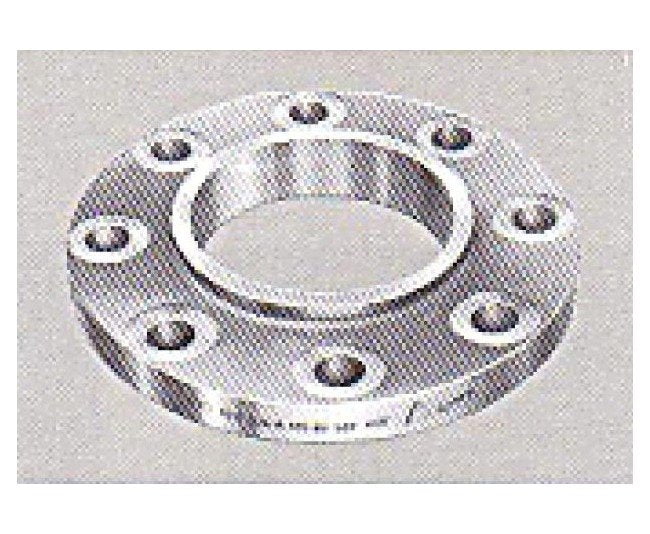

Class 300 Slip-On Flange - 3 Inch
Class 300 Slip-On Flange - 3 Inch
SKU:FIT-39fd5c
High-quality Class 300 Slip-On Flange designed for industrial durability with precise specifications and compliance with industry standards.
Regular price
$159.99
Regular price
Sale price
$159.99
Unit price
per
Initiate Order
Class 300 Slip-On Flange - 3 Inch
$159.99
Quantity: 1
Claim Your Seller Account
Class 300 Slip-On Flange - 3 Inch
$159.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Class 300 Slip-On Flange is designed for heavy-duty industrial applications, featuring precise specifications such as 3-inch Nominal Pipe Size and high-quality forged steel construction. With a raised face design for secure sealing, parallel gasket surfaces, and compliant hub options, this flange ensures reliable performance in pressure-intensive systems. Suitable for various connection methods, it meets stringent industry standards, making it a dependable choice for both consumer and institutional buyers.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features 0

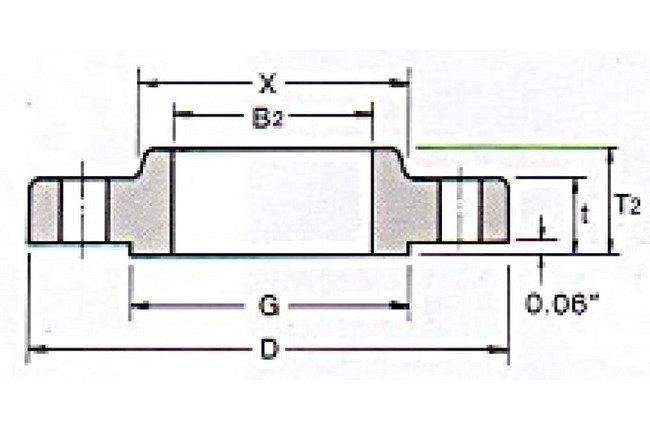

Class 300 flanges except Lap Joint will be furnished with 0.06" raised face, which is included in 'Thickness' (t) and 'Length through Hub' (T1), (T2).For Slip-on, Threaded, Socket Welding and Lap Joint Flanges, the hubs can be shaped either vertical from base to top or tapered within the limits of 7 degreesBlind Flanges may be made with the same hub as that used for Slip-On Flanges or without hub. The gasket surface and backside (bearing surface for bolting) are made parallel within 1 degree. To accomplish parallelism, spot facing is carried out according to MSS SP-9, without reducing thickness (t).Depth of Socket (Y) is covered by ANSI B16.5 only in sizes through 3 inch, over 3" is at the manufacturer's option.
Specifications Approx Weight
12.80 lbs
Specifications Bolt Circle Diameter
6.62 inches
Specifications Bore B2
3.57 inches
Specifications Diameter At Base Of Hub X
4.62 inches
Specifications Diameter Of Bolts
3/4 inches
Specifications Diameter Of Holes
0.88 inches
Specifications Length Thru Hub T2
1.69 inches
Specifications Machine Bolt Length Raised Face
3.50 inches
Specifications Nominal Pipe Size
3 inches
Specifications Number Of Holes
8
Specifications Od Of Raised Face G
5.00 inches
Specifications Outside Diameter D
8.25 inches
Specifications Stud Bolt Length Raised Face
4.25 inches
Specifications Stud Bolt Length Ring Joint
4.75 inches
Specifications Thickness T
1.12 inches
