Class 300 Slip-On Flange - 6 inches
Class 300 Slip-On Flange - 6 inches
SKU:FIT-bf892f
Enhance piping systems with our Class 300 Slip-On Flange - 6 inches: precise dimensions, reliable performance, ideal for institutional & government projects.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Class 300 Slip-On Flange - 6 inches
$89.99
Quantity: 1
Claim Your Seller Account
Class 300 Slip-On Flange - 6 inches
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

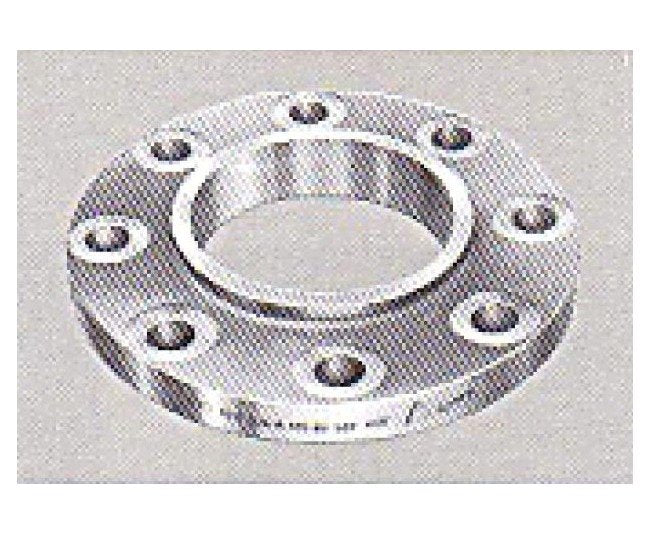

Upgrade your piping system with our Class 300 Slip-On Flange designed for 6-inch pipes. Crafted from forged steel, this flange boasts precise dimensions including a 12.50-inch outer diameter and a 1.44-inch thickness. With features like a 0.06" raised face and parallel gasket surface, it ensures seamless assembly and reliable performance. Ideal for institutions and government projects requiring adherence to stringent standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features 0

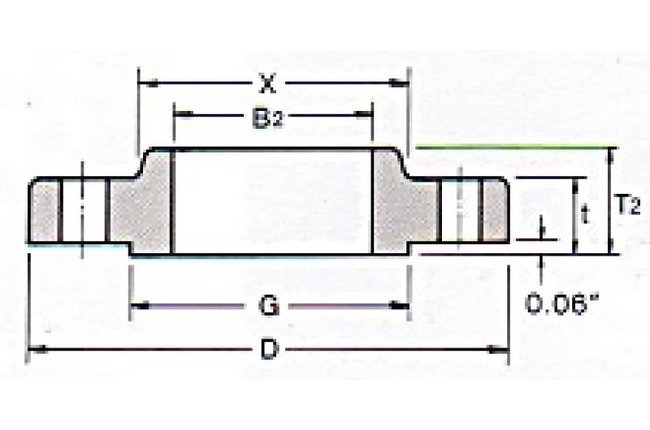

Class 300 flanges except Lap Joint will be furnished with 0.06" raised face, which is included in 'Thickness' (t) and 'Length through Hub' (T1), (T2).For Slip-on, Threaded, Socket Welding and Lap Joint Flanges, the hubs can be shaped either vertical from base to top or tapered within the limits of 7 degreesBlind Flanges may be made with the same hub as that used for Slip-On Flanges or without hub. The gasket surface and backside (bearing surface for bolting) are made parallel within 1 degree. To accomplish parallelism, spot facing is carried out according to MSS SP-9, without reducing thickness (t).Depth of Socket (Y) is covered by ANSI B16.5 only in sizes through 3 inch, over 3" is at the manufacturer's option.
Specifications Approx Weight
35.40 lbs
Specifications Bolt Circle Diameter
10.62 inches
Specifications Bore B2
6.72 inches
Specifications Diameter At Base Of Hub X
8.12 inches
Specifications Diameter Of Bolts
3/4 inches
Specifications Diameter Of Holes
0.88 inches
Specifications Length Thru Hub T2
2.06 inches
Specifications Machine Bolt Length Raised Face
4.25 inches
Specifications Nominal Pipe Size
6 inches
Specifications Number Of Holes
12
Specifications Od Of Raised Face G
8.50 inches
Specifications Outside Diameter D
12.50 inches
Specifications Stud Bolt Length Raised Face
4.75 inches
Specifications Stud Bolt Length Ring Joint
5.50 inches
Specifications Thickness T
1.44 inches
