Class 300 Welding Neck Flange

Name: Class 300 Welding Neck Flange
Brand: Caylor Industrial Sales, Inc.
SKU: FIT-85af03
Price: 129.99 USD
Availability: OutOfStock

SKU:FIT-85af03

Precision-engineered Class 300 Welding Neck Flange for durable and reliable pipe connections in critical applications.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

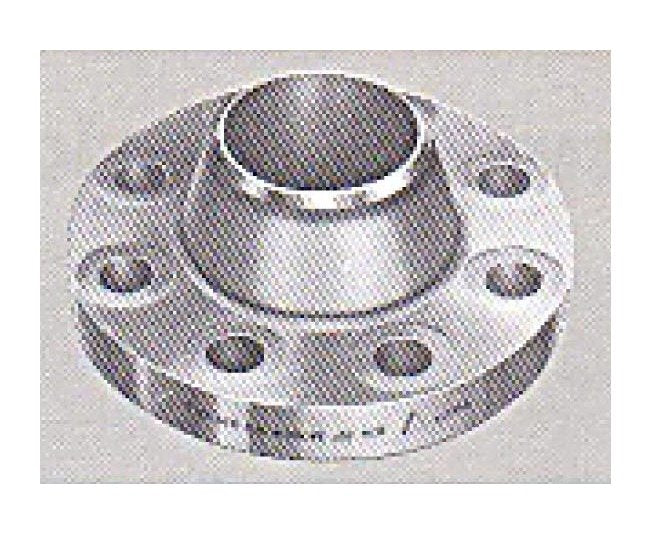

Experience superior quality and precision with our Class 300 Welding Neck Flange designed for critical applications. With a nominal pipe size of 2 1/2 inches and an outside diameter of 7.50 inches, this forged steel flange ensures exceptional durability and reliability. Compliant with ANSI B16.5 standards, it features a raised face for secure sealing and precise machined details for seamless integration. Whether for industrial or institutional use, trust our welding neck flange to meet your most demanding requirements.

Product Specifications

Features 0

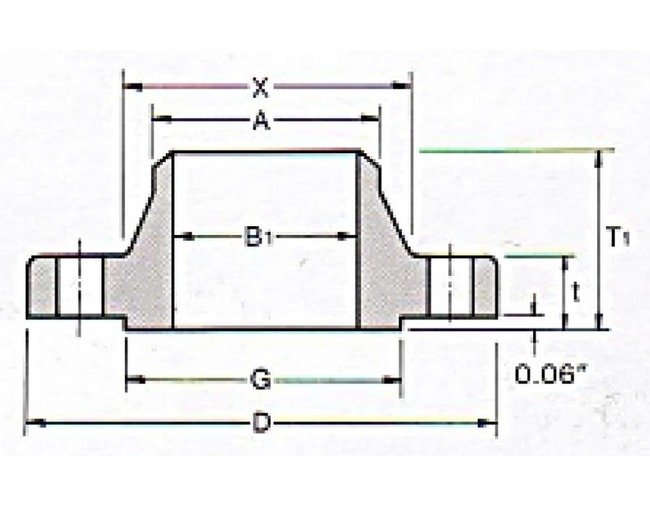

Class 300 flanges except Lap Joint will be furnished with 0.06" raised face, which is included in 'Thickness' (t) and 'Length through Hub' (T1), (T2).For Slip-on, Threaded, Socket Welding and Lap Joint Flanges, the hubs can be shaped either vertical from base to top or tapered within the limits of 7 degreesBlind Flanges may be made with the same hub as that used for Slip-On Flanges or without hub. The gasket surface and backside (bearing surface for bolting) are made parallel within 1 degree. To accomplish parallelism, spot facing is carried out according to MSS SP-9, without reducing thickness (t).Depth of Socket (Y) is covered by ANSI B16.5 only in sizes through 3 inch, over 3" is at the manufacturer's option.

Specifications Approx Weight

11.70 lbs

Specifications Bolt Circle Diameter

5.88 inches

Specifications Bore B1

2.47 inches

Specifications Diameter At Base Of Hub X

3.94 inches

Specifications Diameter Of Bolts

3/4 inches

Specifications Diameter Of Holes

0.88 inches

Specifications Diameter Of Hub At Bevel A

2.88 inches

Specifications Length Thru Hub T1

3.00 inches

Specifications Machine Bolt Length Raised Face

3.25 inches

Specifications Nominal Pipe Size

2 1/2 inches

Specifications Number Of Holes

Specifications Od Of Raised Face G

4.12 inches

Specifications Outside Diameter D

7.50 inches

Specifications Stud Bolt Length Raised Face

4.00 inches

Specifications Stud Bolt Length Ring Joint

4.50 inches

Specifications Thickness T

1.00 inches

Class 300 Welding Neck Flange
