Class 300 Welding Neck Flange, 10-inch
Class 300 Welding Neck Flange, 10-inch
SKU:FIT-9df155
Explore our Class 300 Welding Neck Flange! Durable, precise, and compliant with ANSI B16.5 standards for secure and leak-free connections.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Class 300 Welding Neck Flange, 10-inch
$299.99
Quantity: 1
Claim Your Seller Account
Class 300 Welding Neck Flange, 10-inch
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

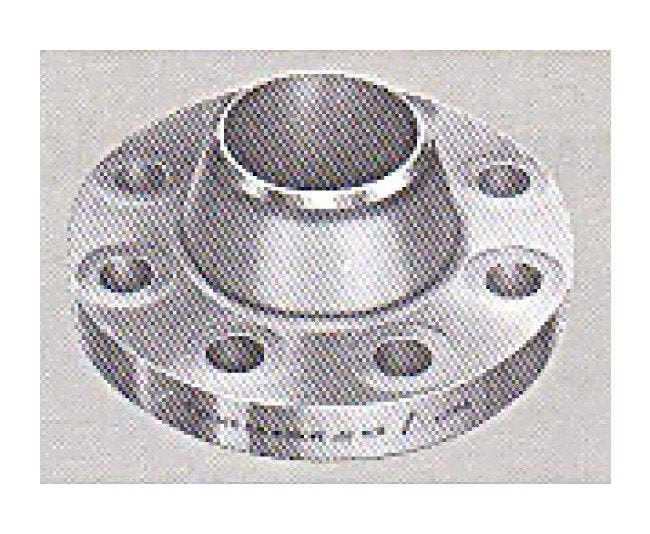

The Class 300 Welding Neck Flange in 10-inch size is a durable forged steel fitting designed for heavy-duty industrial applications. With precise specifications including a 17.50-inch outside diameter and a 1.88-inch thickness, this flange ensures a secure and leak-free connection. Compliant with ANSI B16.5 standards, it features a 0.06" raised face and parallel gasket surface for optimal sealing. Suitable for diverse configurations like Slip-on, Threaded, and Socket Welding, this flange offers versatility and reliability in demanding environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features 0

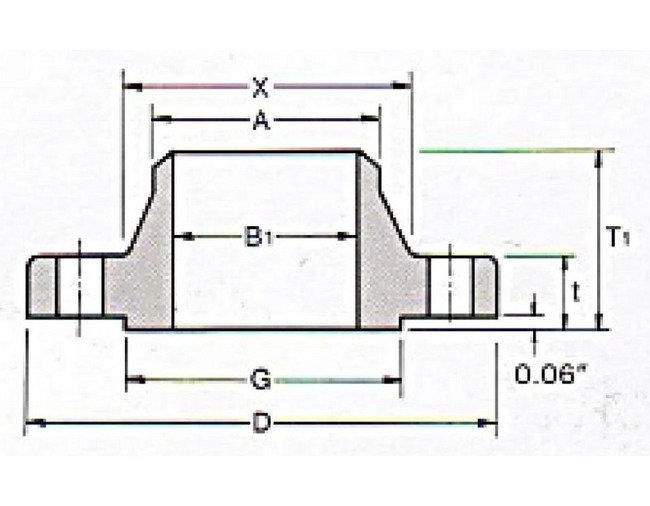

Class 300 flanges except Lap Joint will be furnished with 0.06" raised face, which is included in 'Thickness' (t) and 'Length through Hub' (T1), (T2).For Slip-on, Threaded, Socket Welding and Lap Joint Flanges, the hubs can be shaped either vertical from base to top or tapered within the limits of 7 degreesBlind Flanges may be made with the same hub as that used for Slip-On Flanges or without hub. The gasket surface and backside (bearing surface for bolting) are made parallel within 1 degree. To accomplish parallelism, spot facing is carried out according to MSS SP-9, without reducing thickness (t).Depth of Socket (Y) is covered by ANSI B16.5 only in sizes through 3 inch, over 3" is at the manufacturer's option.
Specifications Approx Weight
96.40 lbs
Specifications Bolt Circle Diameter
15.25 inches
Specifications Bore B1
10.02 inches
Specifications Diameter At Base Of Hub X
12.62 inches
Specifications Diameter Of Bolts
1 inches
Specifications Diameter Of Holes
1.12 inches
Specifications Diameter Of Hub At Bevel A
10.75 inches
Specifications Length Thru Hub T1
4.62 inches
Specifications Machine Bolt Length Raised Face
5.50 inches
Specifications Nominal Pipe Size
10 inches
Specifications Number Of Holes
16
Specifications Od Of Raised Face G
12.75 inches
Specifications Outside Diameter D
17.50 inches
Specifications Stud Bolt Length Raised Face
6.25 inches
Specifications Stud Bolt Length Ring Joint
6.75 inches
Specifications Thickness T
1.88 inches
