Class 300 Welding Neck Flange - 24 in.
Class 300 Welding Neck Flange - 24 in.
SKU:FIT-172afc
Premium Class 300 Welding Neck Flange - 24 in.: Precision engineering for secure, leak-free connections in industrial settings.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Class 300 Welding Neck Flange - 24 in.
$899.99
Quantity: 1
Claim Your Seller Account
Class 300 Welding Neck Flange - 24 in.
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

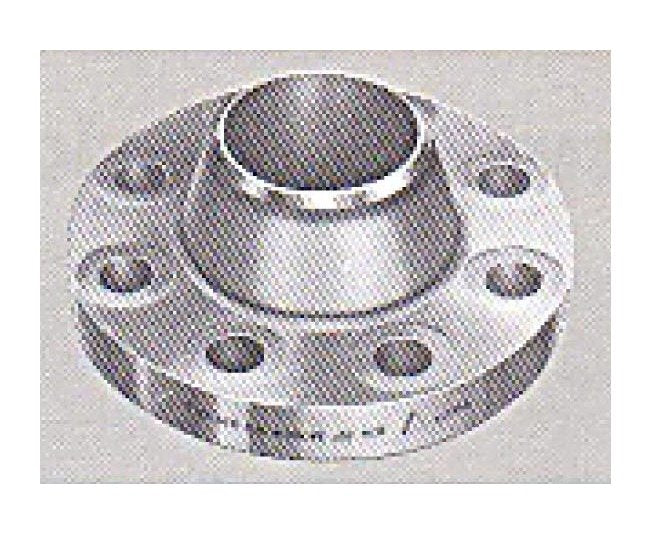

The Class 300 Welding Neck Flange is a heavy-duty forged steel fitting designed for industrial applications. With precise specifications including a 24-inch nominal pipe size, 2.75-inch thickness, and 36-inch outer diameter, this flange ensures secure and leak-free connections. Compliant with ANSI B16.5 standards, it features a raised face for easy installation and exceptional structural integrity. Ideal for high-pressure systems, this flange offers reliability and durability meeting the stringent requirements of institutional and government procurement.
Product Specifications
Features 0

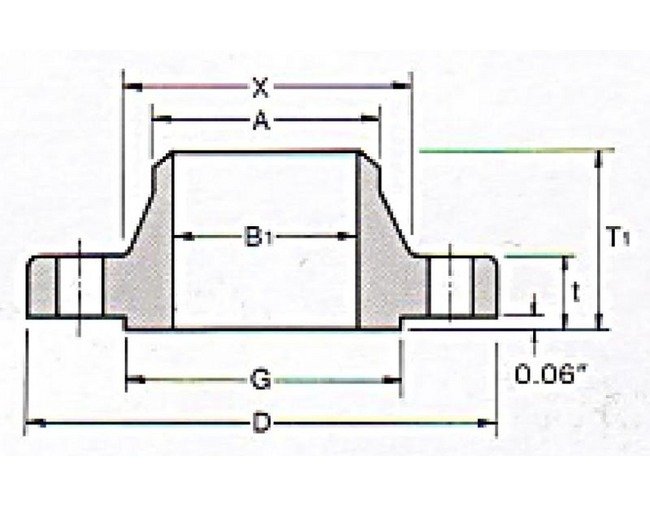

Class 300 flanges except Lap Joint will be furnished with 0.06" raised face, which is included in 'Thickness' (t) and 'Length through Hub' (T1), (T2).For Slip-on, Threaded, Socket Welding and Lap Joint Flanges, the hubs can be shaped either vertical from base to top or tapered within the limits of 7 degreesBlind Flanges may be made with the same hub as that used for Slip-On Flanges or without hub. The gasket surface and backside (bearing surface for bolting) are made parallel within 1 degree. To accomplish parallelism, spot facing is carried out according to MSS SP-9, without reducing thickness (t).Depth of Socket (Y) is covered by ANSI B16.5 only in sizes through 3 inch, over 3" is at the manufacturer's option.
Specifications Approx Weight
519.00 lbs
Specifications Bolt Circle Diameter
32.00 inches
Specifications Bore B1
23.25 inches
Specifications Diameter At Base Of Hub X
27.62 inches
Specifications Diameter Of Bolts
1 1/2 inches
Specifications Diameter Of Holes
1.62 inches
Specifications Diameter Of Hub At Bevel A
24.00 inches
Specifications Length Thru Hub T1
6.62 inches
Specifications Machine Bolt Length Raised Face
8.00 inches
Specifications Nominal Pipe Size
24 inches
Specifications Number Of Holes
24
Specifications Od Of Raised Face G
27.25 inches
Specifications Outside Diameter D
36.00 inches
Specifications Stud Bolt Length Raised Face
9.00 inches
Specifications Stud Bolt Length Ring Joint
10.00 inches
Specifications Thickness T
2.75 inches
