Class 3000 Reducing Couplings, 1 1/4" to 1/4"
Class 3000 Reducing Couplings, 1 1/4" to 1/4"
SKU:FIT-b2d1f4
High-quality Class 3000 Reducing Couplings for secure socket weld connections in high-pressure applications.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Class 3000 Reducing Couplings, 1 1/4" to 1/4"
$69.99
Quantity: 1
Claim Your Seller Account
Class 3000 Reducing Couplings, 1 1/4" to 1/4"
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

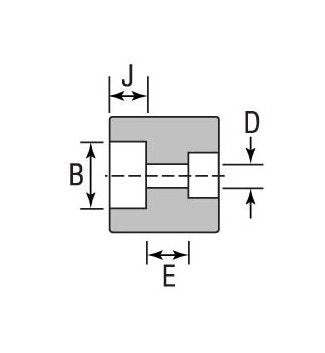

Our Class 3000 Reducing Couplings are forged steel fittings specifically designed for high-pressure applications. With NPS of 1 1/4" and a lowest reduction of 1/4", these couplings ensure a secure socket weld connection. The precision-engineered design features a socket diameter of 43mm, bore diameter options of 34mm or 36mm, and a minimum socket depth of 13mm. Meeting stringent industry standards, these couplings provide durability, leak-proof performance, and ease of installation, making them ideal for industrial and institutional projects requiring reliable connections.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Bore Diameter D
34 mm | 36 mm
Specifications Dimension C Min
5 mm
Specifications Dimension E
13.00 mm
Specifications Dn
32
Specifications Lowest Reduction Dn
8
Specifications Lowest Reduction Nps
1/4
Specifications Minimum Socket Depth J
13 mm
Specifications Nps
1 1/4
Specifications Socket Diameter B
43 mm
Specifications Weight100 Pieces
38 kg
