Class 3000 Socket-Weld 45-Degree Elbows
Class 3000 Socket-Weld 45-Degree Elbows
SKU:FIT-2ec103
High-grade forged steel fittings for secure industrial connections. Meeting industry standards for durability and performance.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Class 3000 Socket-Weld 45-Degree Elbows
$79.99
Quantity: 1
Claim Your Seller Account
Class 3000 Socket-Weld 45-Degree Elbows
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

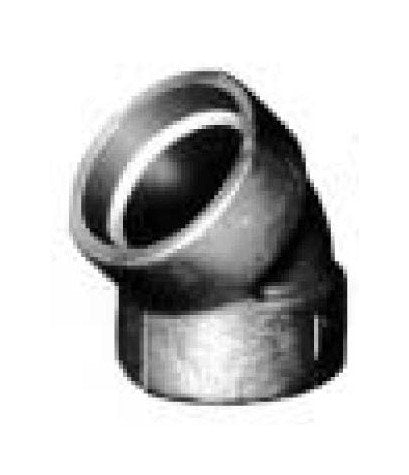

The Class 3000 Socket-Weld 45-Degree Elbows are precision-engineered forged steel fittings suitable for a variety of industrial applications. With a Socket Diameter of 22mm and a Bore Diameter ranging from 15mm to 17mm, these elbows ensure reliable connectivity and optimal flow performance. The minimum Socket Depth of 10mm and robust construction guarantee durability and long-term functionality. Meeting stringent industry standards, these elbows are ideal for both consumer and institutional buyers requiring high-quality fittings.

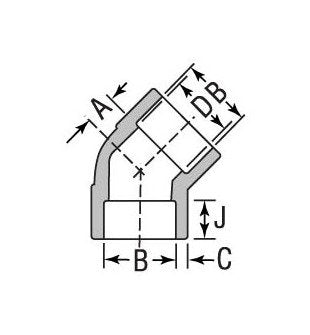

Product Specifications
Specifications Bore Diameter D
15 mm | 17 mm
Specifications Dimension A Nominal
11 mm
Specifications Dimension C Min
4 mm
Specifications Dn
15
Specifications Minimum Socket Depth J
10 mm
Specifications Nps
1/2
Specifications Socket Diameter B
22 mm
Specifications Weight100 Pieces
17 kg
