Class 3000 Socket-Weld 45-Degree Elbows, Size 3/8" NPS
Class 3000 Socket-Weld 45-Degree Elbows, Size 3/8" NPS
SKU:FIT-c35020
Premium Class 3000 Socket-Weld 45-degree elbows, forged steel construction, 18mm socket diameter, precise dimensions, compliant with federal standards.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Class 3000 Socket-Weld 45-Degree Elbows, Size 3/8" NPS
$499.99
Quantity: 1
Claim Your Seller Account
Class 3000 Socket-Weld 45-Degree Elbows, Size 3/8" NPS
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

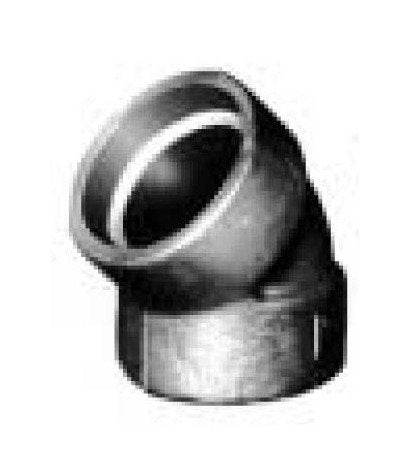

Our Class 3000 Socket-Weld 45-degree elbows are precision-engineered fittings designed for high-pressure applications. Made from forged steel, these elbows feature a 18mm socket diameter, ensuring a secure connection. With a bore diameter of 12mm | 13mm, they provide excellent flow capacity. The 10mm minimum socket depth and 4mm dimension ensure precise installation. Each elbow weighs 8.6 kg for a pack of 100 pieces, offering durability and reliability in industrial settings. Compliant with industry standards, these elbows meet the stringent requirements of federal procurement standards.
Ready to Grow Without Cash Flow Constraints?

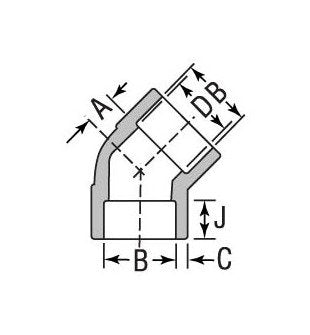

Product Specifications
Specifications Bore Diameter D
12 mm | 13 mm
Specifications Dimension A Nominal
8 mm
Specifications Dimension C Min
4 mm
Specifications Dn
10
Specifications Minimum Socket Depth J
10 mm
Specifications Nps
3/8
Specifications Socket Diameter B
18 mm
Specifications Weight100 Pieces
8.6 kg
