Class 3000 Socket-Weld Anvilets
Class 3000 Socket-Weld Anvilets
SKU:FIT-924873
High-performance Class 3000 Socket-Weld Anvilets for secure and leak-free connections in industrial piping systems.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Class 3000 Socket-Weld Anvilets
$49.99
Quantity: 1
Claim Your Seller Account
Class 3000 Socket-Weld Anvilets
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Class 3000 Socket-Weld Anvilets are precision-engineered fittings designed for industrial applications requiring high performance and durability. With an outlet size of 1 1/2 NPS (40 DN), these Anvilets support nominal run pipe sizes ranging from 2 to 36 NPS (50 - 900 DN). Meeting strict tolerance standards of ±0.06, these fittings are suitable for both reducing and full sizes, ensuring a secure and leak-free connection. Crafted for versatility, they are compatible with standard and XS pipes, making them a reliable choice for various piping systems.

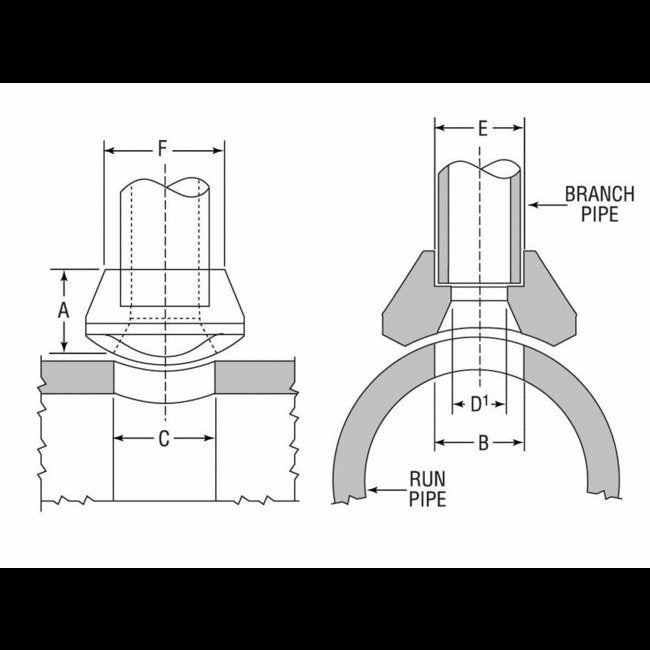

Product Specifications
Specifications Class
3000
Specifications Dimension A
35.00 mm
Specifications Dimension B
51.00 mm
Specifications Dimension C
51.00 mm
Specifications Dimension D 003
41 mm
Specifications Dimension E 001
49 mm
Specifications Dimension F
62.00 mm
Specifications Nominal Run Pipe Size Dn
50 - 900
Specifications Nominal Run Pipe Size Nps
2 - 36
Specifications Outlet Size Dn
40
Specifications Outlet Size Nps
1 1/2
Specifications Weight
0.68 kg
