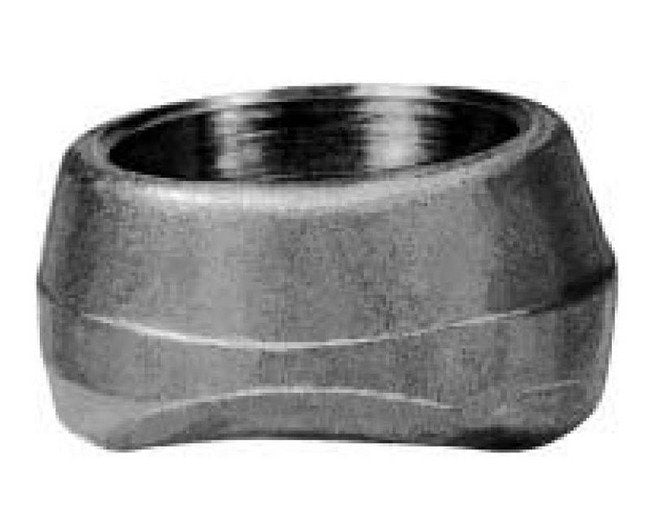

Class 3000 Socket-Weld Anvilets
Class 3000 Socket-Weld Anvilets
SKU:FIT-4b6980
Enhance your piping system with precision Class 3000 Socket-Weld Anvilets for secure connections. Sizes ranging from NPS 1 to 36 and DN 25 to 900.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Class 3000 Socket-Weld Anvilets
$39.99
Quantity: 1
Claim Your Seller Account
Class 3000 Socket-Weld Anvilets
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your piping system with precision-engineered Class 3000 Socket-Weld Anvilets, designed for seamless connections with standard and XS pipes. Featuring a tolerance of ± 0.06 on sizes 2 1/2 NPS and larger, these Anvilets are available in both reducing and full sizes. With outlet sizes NPS 1 and DN 25, and compatibility with nominal run pipe sizes ranging from 1 1/4 to 36 NPS and 32 to 900 DN, these Anvilets ensure a secure and reliable fit. The dimensions are meticulously crafted for optimal performance, with a durable construction that meets stringent industry standards.

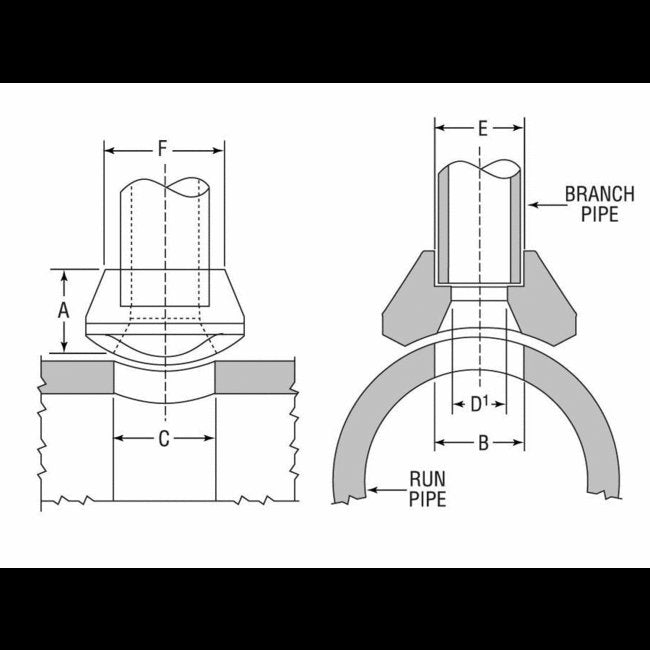

Product Specifications
Specifications Class
3000
Specifications Dimension A
33.00 mm
Specifications Dimension B
37.00 mm
Specifications Dimension C
37.00 mm
Specifications Dimension D 003
27 mm
Specifications Dimension E 001
34 mm
Specifications Dimension F
47.00 mm
Specifications Nominal Run Pipe Size Dn
32 - 900
Specifications Nominal Run Pipe Size Nps
1 1/4 - 36
Specifications Outlet Size Dn
25
Specifications Outlet Size Nps
1
Specifications Weight
0.36 kg
