Class 3000 Socket-Weld Anvilets - 1 NPS
Class 3000 Socket-Weld Anvilets - 1 NPS
SKU:FIT-8a5807
High-performance Class 3000 Socket-Weld Anvilets - perfect for precise and reliable connections.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Class 3000 Socket-Weld Anvilets - 1 NPS
$29.99
Quantity: 1
Claim Your Seller Account
Class 3000 Socket-Weld Anvilets - 1 NPS
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

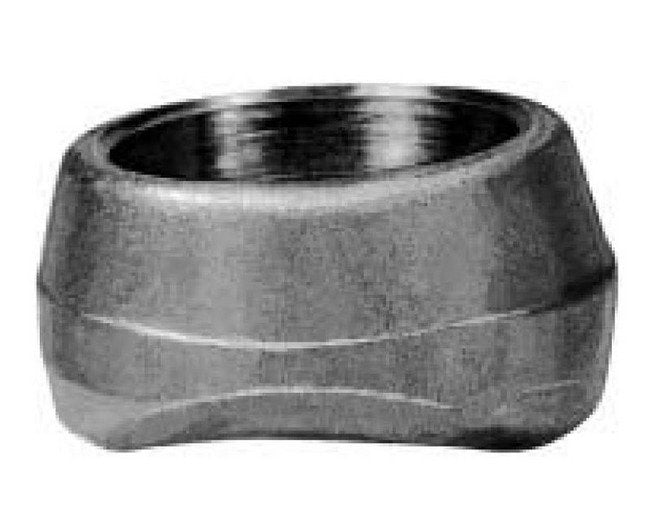

The Class 3000 Socket-Weld Anvilets in 1 NPS size are expertly engineered for precision and durability. Meeting stringent tolerances, these Anvilets offer reliable performance in demanding applications. Suitable for use with standard and XS pipes, these fittings ensure secure connections and optimal flow. With dimensions meticulously crafted to industry standards, these Anvilets guarantee a seamless fit and exceptional functionality.
Product Specifications
Specifications Class
3000

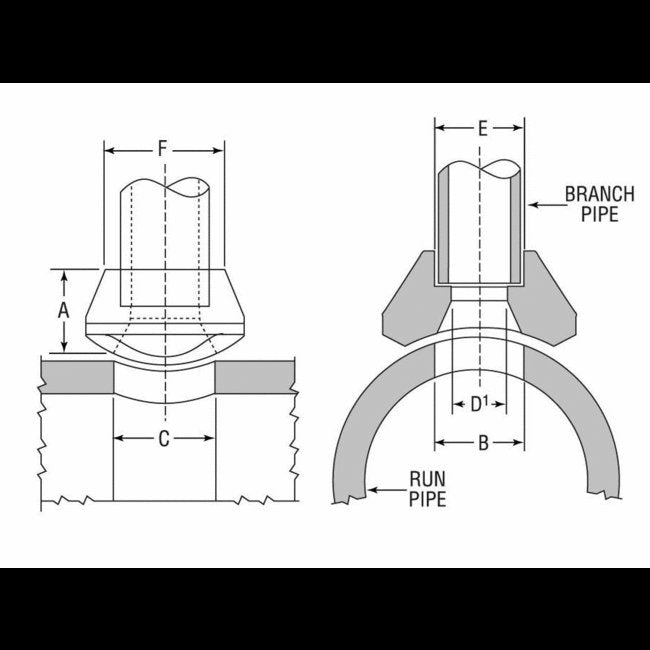

Specifications Dimension A
33.00 mm
Specifications Dimension B
27.00 mm
Specifications Dimension C
37.00 mm
Specifications Dimension D 003
27 mm
Specifications Dimension E 001
34 mm
Specifications Dimension F
47.00 mm
Specifications Nominal Run Pipe Size Dn
25
Specifications Nominal Run Pipe Size Nps
1
Specifications Outlet Size Dn
25
Specifications Outlet Size Nps
1
Specifications Weight
0.27 kg
