Class 3000 Socket-Weld Anvilets
Class 3000 Socket-Weld Anvilets
SKU:FIT-1a1b97
Enhance piping systems with Class 3000 Socket-Weld Anvilets for secure and precise connections. Ideal for industrial use.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Class 3000 Socket-Weld Anvilets
$49.99
Quantity: 1
Claim Your Seller Account
Class 3000 Socket-Weld Anvilets
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

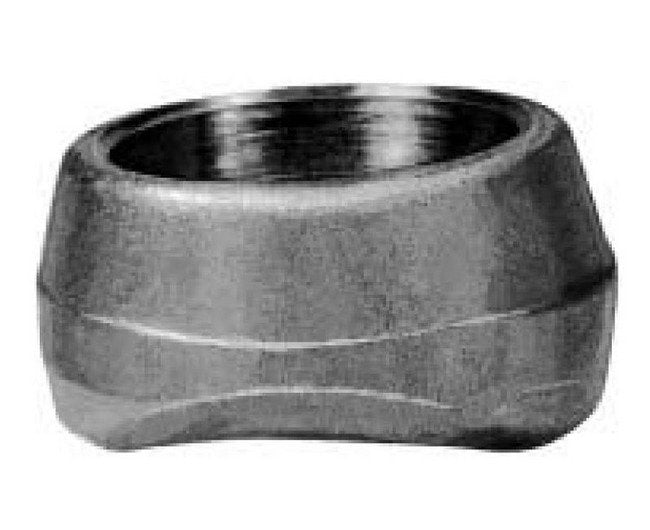

Upgrade piping systems with precision-engineered Class 3000 Socket-Weld Anvilets. These malleable fittings feature a tolerance of ± 0.06 on larger sizes, ensuring a secure fit. Designed for use with standard and XS pipes, these Anvilets provide reliable connections for long-term performance. With Outlet Size NPS of 1 1/4 (32 DN) and durable construction, they offer exceptional dimensional accuracy and structural integrity. Ideal for industrial applications requiring Class 3000 ratings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Class
3000

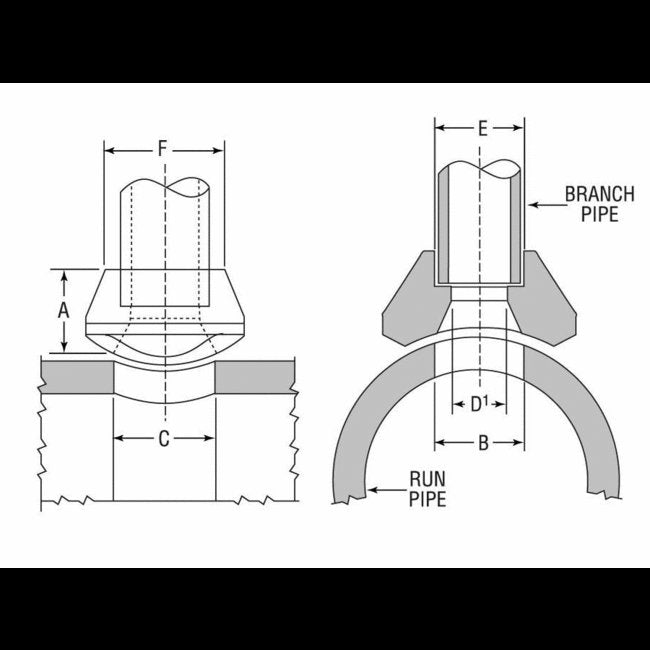

Specifications Dimension A
33.00 mm
Specifications Dimension B
35.00 mm
Specifications Dimension C
44.00 mm
Specifications Dimension D 003
35 mm
Specifications Dimension E 001
43 mm
Specifications Dimension F
56.00 mm
Specifications Nominal Run Pipe Size Dn
32
Specifications Nominal Run Pipe Size Nps
1 1/4
Specifications Outlet Size Dn
32
Specifications Outlet Size Nps
1 1/4
Specifications Weight
0.36 kg
