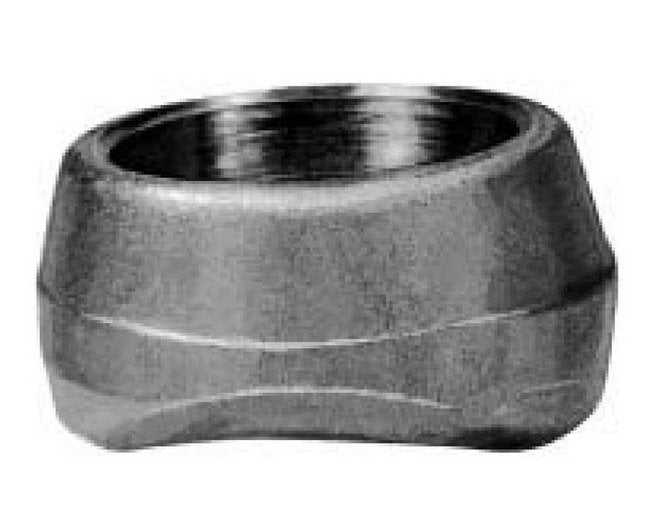

Class 3000 Socket-Weld Anvilets
Class 3000 Socket-Weld Anvilets
SKU:FIT-26f135
High-quality Class 3000 Socket-Weld Anvilets for secure industrial piping connections. Versatile & durable fittings for various applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Class 3000 Socket-Weld Anvilets
$29.99
Quantity: 1
Claim Your Seller Account
Class 3000 Socket-Weld Anvilets
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Class 3000 Socket-Weld Anvilets are precision-engineered fittings for industrial applications, offering reliable performance and durability. With an outlet size of 2 NPS (50 DN) and a weight of 0.82 kg, these Anvilets ensure a secure connection with nominal run pipe sizes. Manufactured with strict adherence to standards, their dimensions meet precise tolerances, including Class 3000 specifications. Compatible with standard and XS pipes, these Anvilets provide versatility and efficiency in various piping systems, making them ideal for commercial, institutional, and government projects.

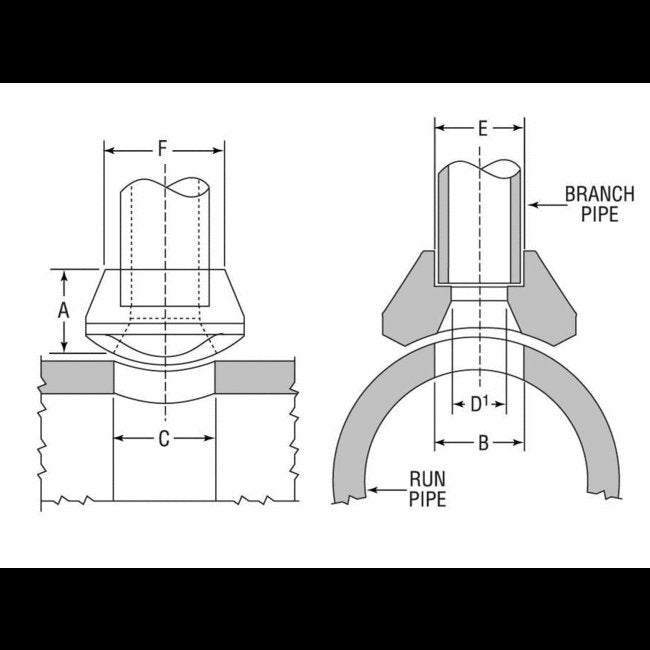

Product Specifications
Specifications Class
3000
Specifications Dimension A
38.00 mm
Specifications Dimension B
52.00 mm
Specifications Dimension C
65.00 mm
Specifications Dimension D 003
53 mm
Specifications Dimension E 001
61 mm
Specifications Dimension F
75.00 mm
Specifications Nominal Run Pipe Size Dn
50
Specifications Nominal Run Pipe Size Nps
2
Specifications Outlet Size Dn
50
Specifications Outlet Size Nps
2
Specifications Weight
0.82 kg
