Class 3000 Socket-Weld Anvilets
Class 3000 Socket-Weld Anvilets
SKU:FIT-2cf70f
Enhance your piping system with precision-engineered Class 3000 Socket-Weld Anvilets. Suitable for sizes 2 1/2 NPS (65 DN) and larger, with ±0.06 tolerance. Compatible with Class 3000 applications and standard/XS pipes.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Class 3000 Socket-Weld Anvilets
$49.99
Quantity: 1
Claim Your Seller Account
Class 3000 Socket-Weld Anvilets
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your piping system with precision-engineered Class 3000 Socket-Weld Anvilets. These fittings offer superior performance with a tolerance of ±0.06, suitable for sizes 2 1/2 NPS (65 DN) and larger. Designed for Class 3000 applications, these Anvilets are compatible with standard and XS pipes, ensuring a secure and durable connection. With outlet sizes of 2 NPS (50 DN) and a weight of 0.91 kg, these Anvilets provide reliable support for nominal run pipe sizes ranging from 2 1/2 to 36 NPS (65 to 900 DN). Elevate your industrial projects with the precision and quality of Class 3000 Socket-Weld Anvilets.
Product Specifications
Specifications Class
3000

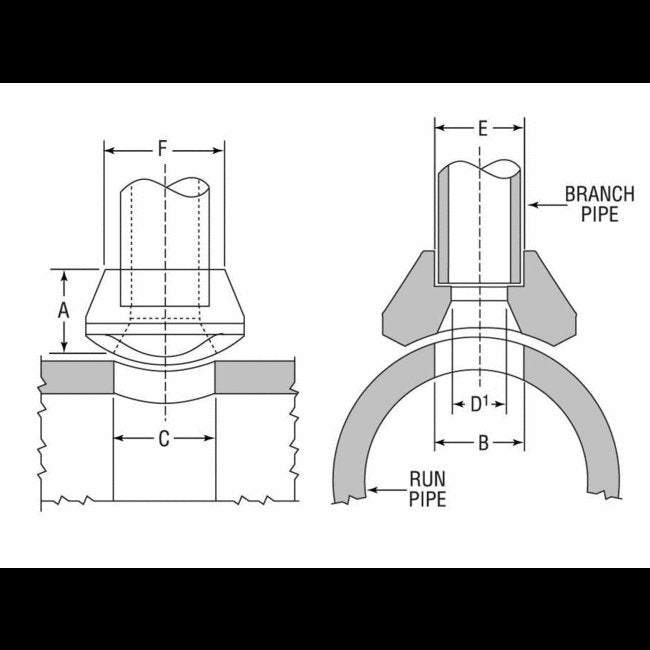

Specifications Dimension A
38.00 mm
Specifications Dimension B
65.00 mm
Specifications Dimension C
65.00 mm
Specifications Dimension D 003
53 mm
Specifications Dimension E 001
61 mm
Specifications Dimension F
75.00 mm
Specifications Nominal Run Pipe Size Dn
65 - 900
Specifications Nominal Run Pipe Size Nps
2 1/2 - 36
Specifications Outlet Size Dn
50
Specifications Outlet Size Nps
2
Specifications Weight
0.91 kg
