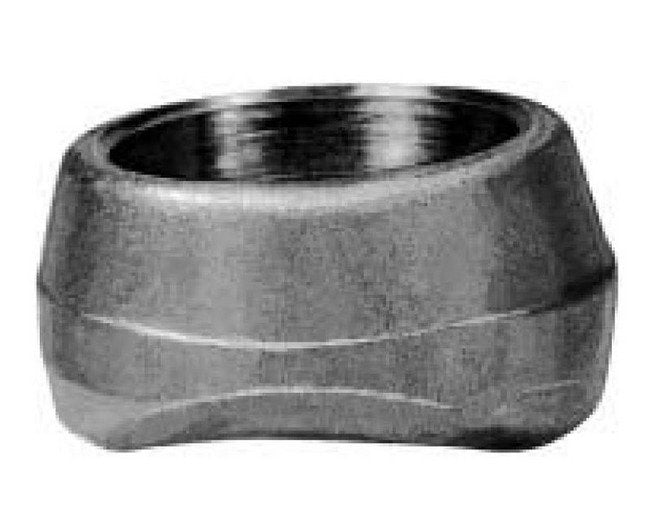

Class 3000 Socket-Weld Anvilets
Class 3000 Socket-Weld Anvilets
SKU:FIT-a36dfa
Enhance pipe connections with our precision-engineered Class 3000 Socket-Weld Anvilets. Reliable, durable, and compliant with industry standards.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Class 3000 Socket-Weld Anvilets
$49.99
Quantity: 1
Claim Your Seller Account
Class 3000 Socket-Weld Anvilets
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience precision engineering with our Class 3000 Socket-Weld Anvilets, designed for sizes 2 1/2 NPS and above with a tolerance of ± 0.06. These anvil fittings are suitable for both reducing and full sizes, enabling seamless integration with standard and XS pipes. With outlet and nominal run pipe sizes of 3/4 NPS (20 DN) and dimensions meeting stringent standards, these Socket-Weld Anvilets ensure reliable performance and durability in industrial applications.
Product Specifications
Specifications Class
3000

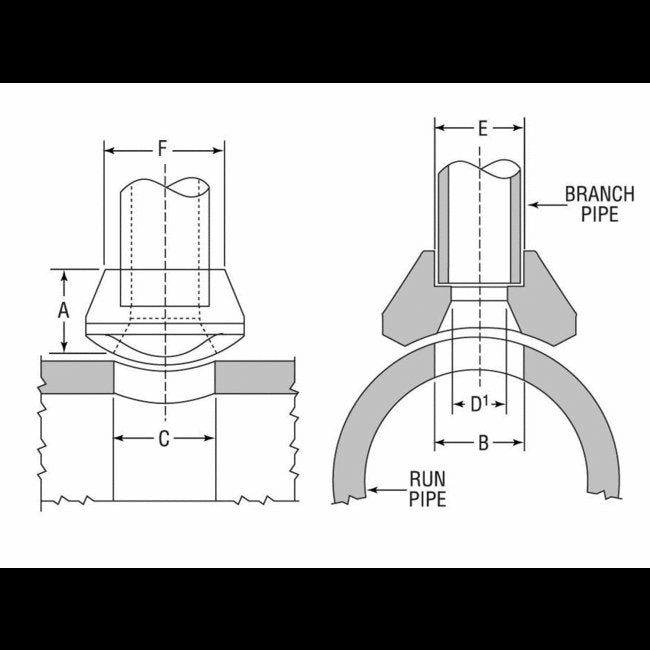

Specifications Dimension A
27.00 mm
Specifications Dimension B
22.00 mm
Specifications Dimension C
30.00 mm
Specifications Dimension D 003
21 mm
Specifications Dimension E 001
27 mm
Specifications Dimension F
37.00 mm
Specifications Nominal Run Pipe Size Dn
20
Specifications Nominal Run Pipe Size Nps
3/4
Specifications Outlet Size Dn
20
Specifications Outlet Size Nps
3/4
Specifications Weight
0.12 kg
