Class 3000 Socket-Weld Anvilets (2 1/2 NPS)
Class 3000 Socket-Weld Anvilets (2 1/2 NPS)
SKU:FIT-3db3cc
Discover precision and durability with our Class 3000 Socket-Weld Anvilets. Trust in secure connections for your piping needs!
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Class 3000 Socket-Weld Anvilets (2 1/2 NPS)
$89.99
Quantity: 1
Claim Your Seller Account
Class 3000 Socket-Weld Anvilets (2 1/2 NPS)
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your piping systems with our Class 3000 Socket-Weld Anvilets designed to precision. With outlet sizes of 2 1/2 NPS (65 DN), these Anvilets ensure secure connections with a tolerance of ±0.06. Suitable for both reducing and full sizes, they are compatible with standard and XS pipes. Crafted for durability and reliability, these Anvilets feature precise dimensions and a sturdy build to meet stringent industrial requirements.

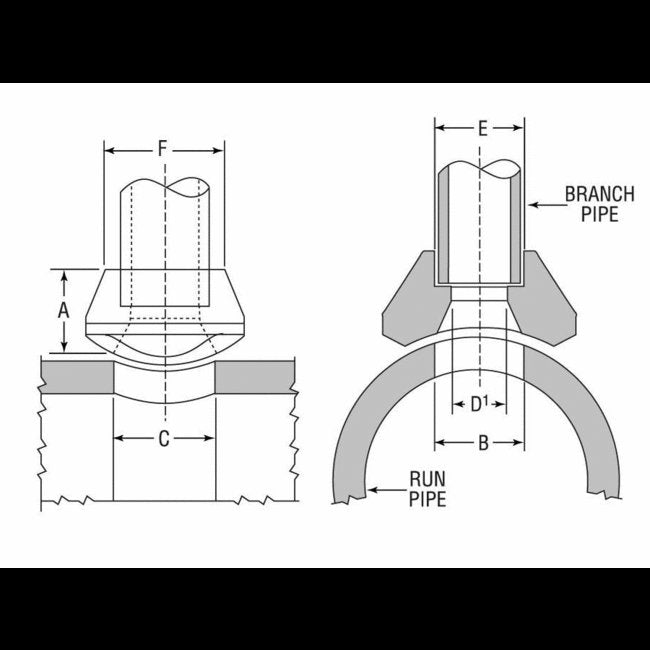

Product Specifications
Specifications Class
3000
Specifications Dimension A
40.00 mm
Specifications Dimension B
64.00 mm
Specifications Dimension C
76.00 mm
Specifications Dimension D 003
63 mm
Specifications Dimension E 001
74 mm
Specifications Dimension F
87.00 mm
Specifications Nominal Run Pipe Size Dn
65
Specifications Nominal Run Pipe Size Nps
2 1/2
Specifications Outlet Size Dn
65
Specifications Outlet Size Nps
2 1/2
Specifications Weight
1.10 kg
