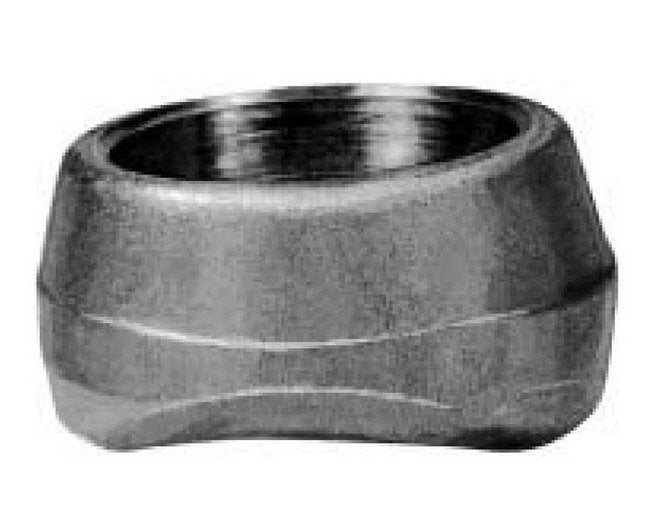

Class 3000 Socket-Weld Anvilets - 4 NPS
Class 3000 Socket-Weld Anvilets - 4 NPS
SKU:FIT-d2413a
High-performance Class 3000 Socket-Weld Anvilets for secure connections in industrial applications. Size: 4 NPS.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Class 3000 Socket-Weld Anvilets - 4 NPS
$79.99
Quantity: 1
Claim Your Seller Account
Class 3000 Socket-Weld Anvilets - 4 NPS
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Class 3000 Socket-Weld Anvilets in 4 NPS (100 DN) are precision-engineered fittings designed for industrial applications requiring high-pressure performance. With a tolerance of ±0.06, these Anvilets offer reliability and durability in demanding environments. Suitable for use with standard and XS pipes, these Anvilets are crafted to exacting standards, ensuring a secure and leak-free connection every time.

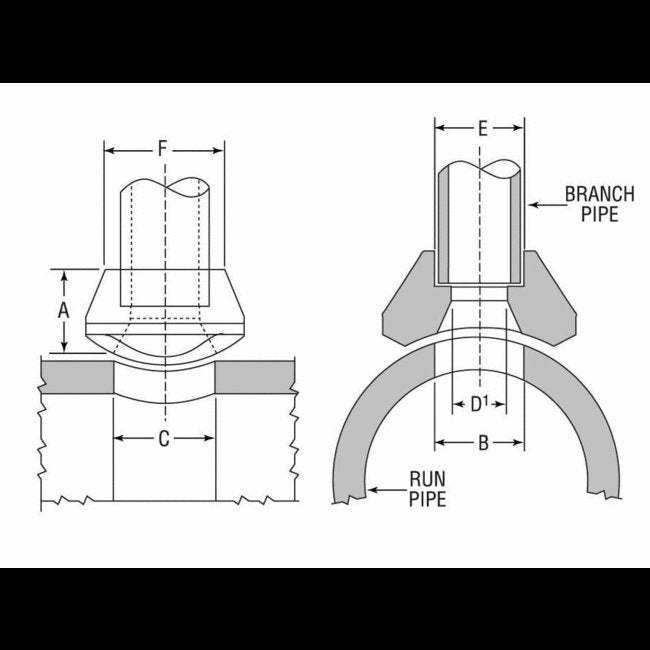

Product Specifications
Specifications Class
3000
Specifications Dimension A
48.00 mm
Specifications Dimension B
103.00 mm
Specifications Dimension C
121.00 mm
Specifications Dimension D 003
102 mm
Specifications Dimension E 001
115 mm
Specifications Dimension F
130.00 mm
Specifications Nominal Run Pipe Size Dn
100
Specifications Nominal Run Pipe Size Nps
4
Specifications Outlet Size Dn
100
Specifications Outlet Size Nps
4
Specifications Weight
3.30 kg
